65RX2540 M6

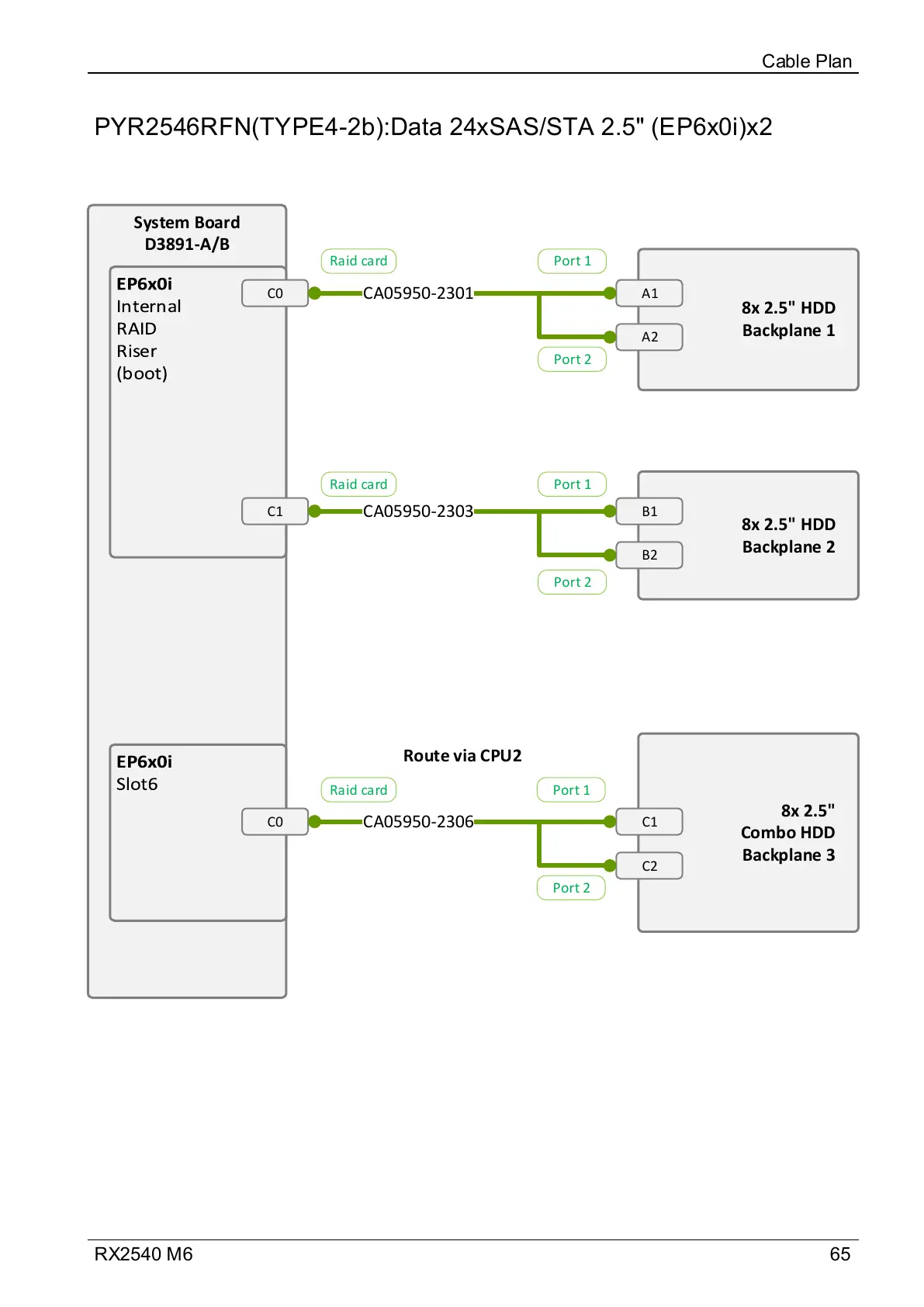

PYR2546RFN(TYPE4-2b):Data 24xSAS/STA 2.5" (EP6x0i)x2
Cable Plan
System Board
D3891-A/B
C0
8x 2.5" HDD
Backplane 1
A1
A2
CA05950-2301
8x 2.5" HDD
Backplane 2
B1
B2
C1
CA05950-2303
8x 2.5"
Combo HDD
Backplane 3
C1
C2
C0
CA05950-2306
Port 1
Port 2
Port 1
Port 2
Port 1
Port 2
Raid card
Raid card
Raid card
Route via CPU2
