18RX2540 M6

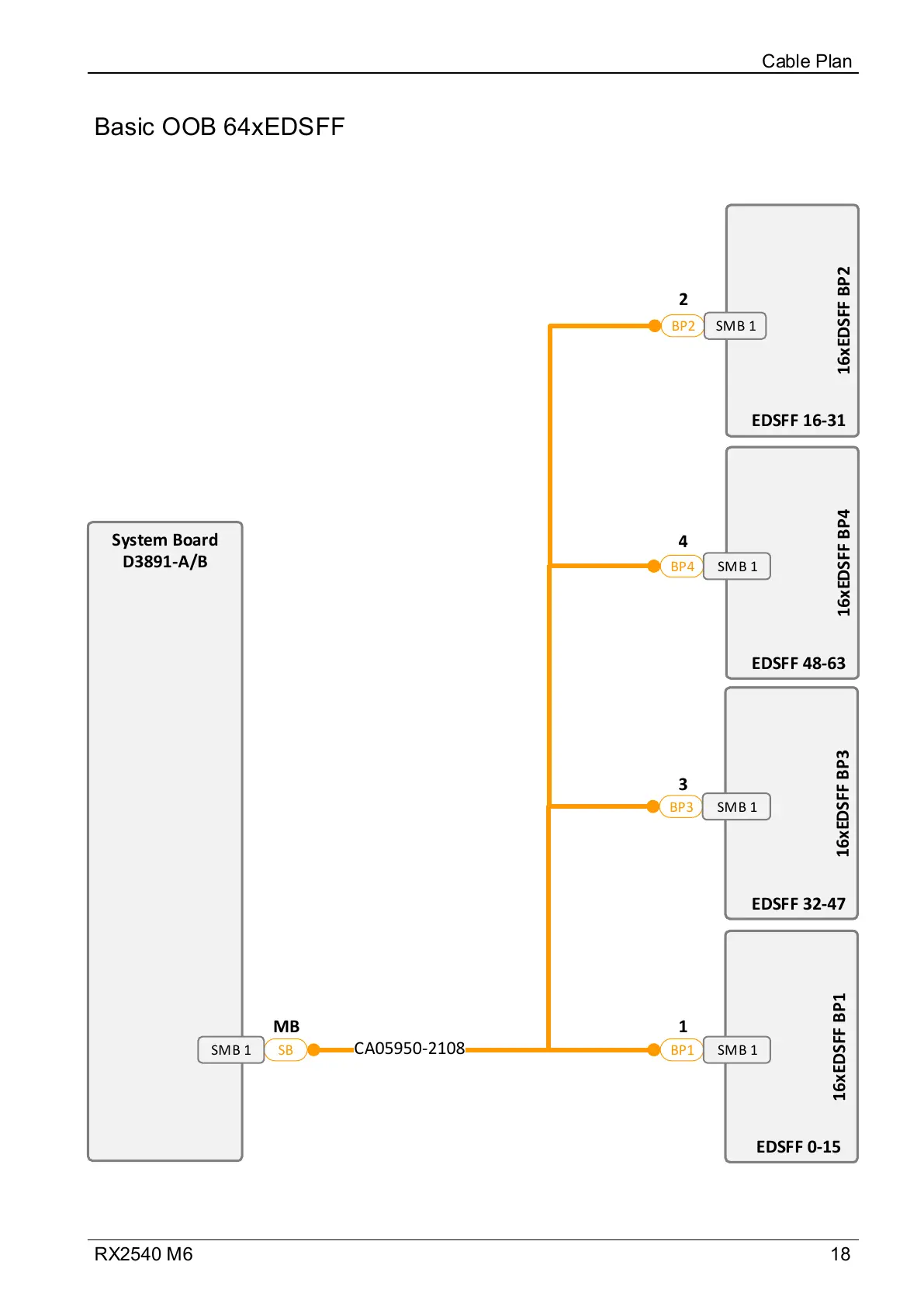

Basic OOB 64xEDSFF
Cable Plan
16xEDSFF BP316xEDSFF BP3
16xEDSFF BP116xEDSFF BP1
CA05950-2108
SB BP1
BP3
System Board
D3891-A/B
SMB 1
16xEDSFF BP416xEDSFF BP4
BP4
16xEDSFF BP216xEDSFF BP2
BP2
SMB 1
SMB 1
SMB 1
SMB 1
1MB
4
2
3
EDSFF 0-15
EDSFF 48-63
EDSFF 16-31
EDSFF 32-47
