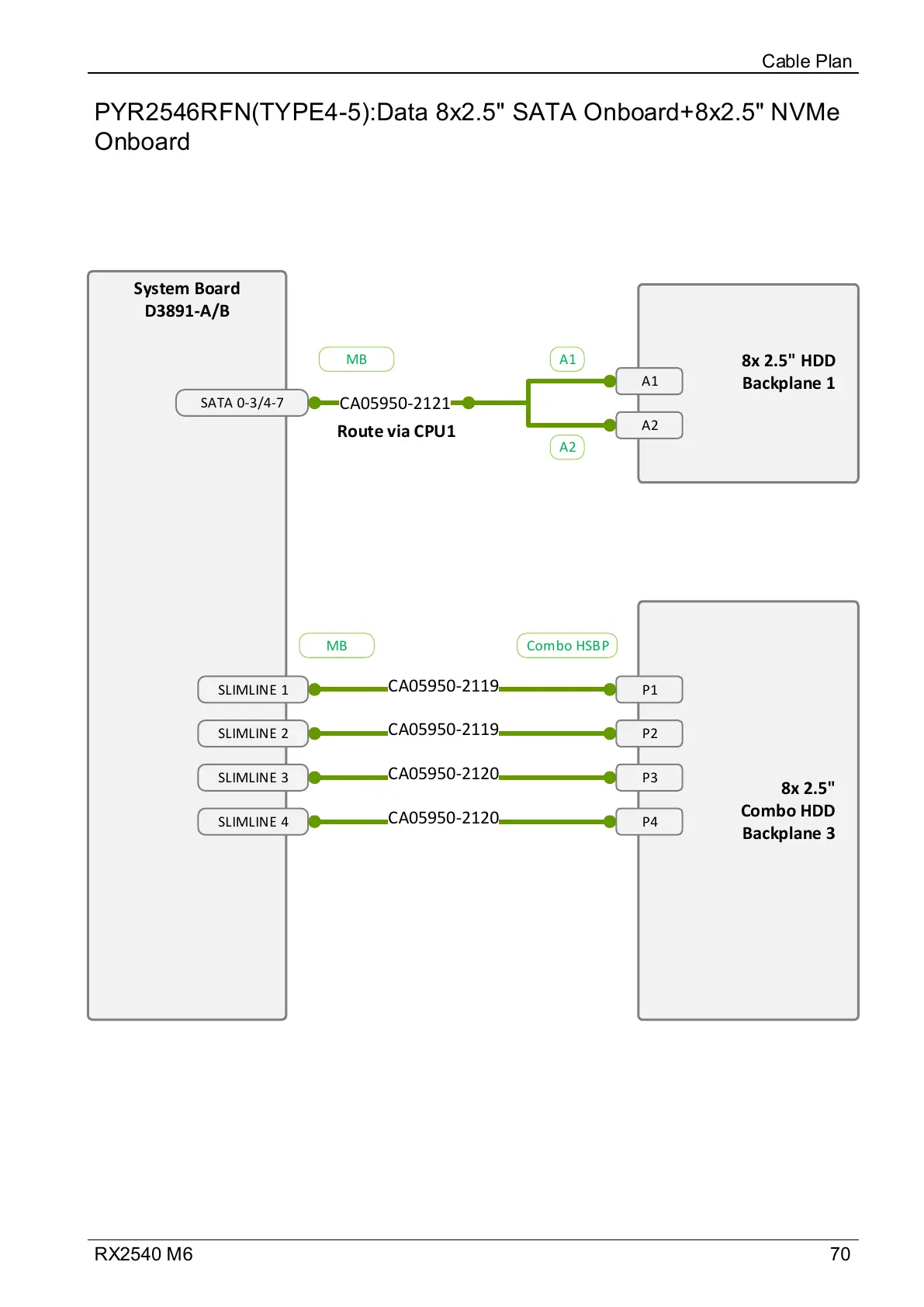

PYR2546RFN(TYPE4-5):Data 8x2.5" SATA Onboard+8x2.5" NVMe
Onboard
Cable Plan
System Board
D3891-A/B
SATA 0-3/4-7
8x 2.5" HDD
Backplane 1
A1
A2
CA05950-2121
A1
A2
8x 2.5"
Combo HDD
Backplane 3
P1
P2
CA05950-2119
CA05950-2119
SLIMLINE 1
SLIMLINE 2
SLIMLINE 3
SLIMLINE 4
P3
P4
CA05950-2120
CA05950-2120
MB
MB Combo HSBP
Route via CPU1
