Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

84RX2540 M6

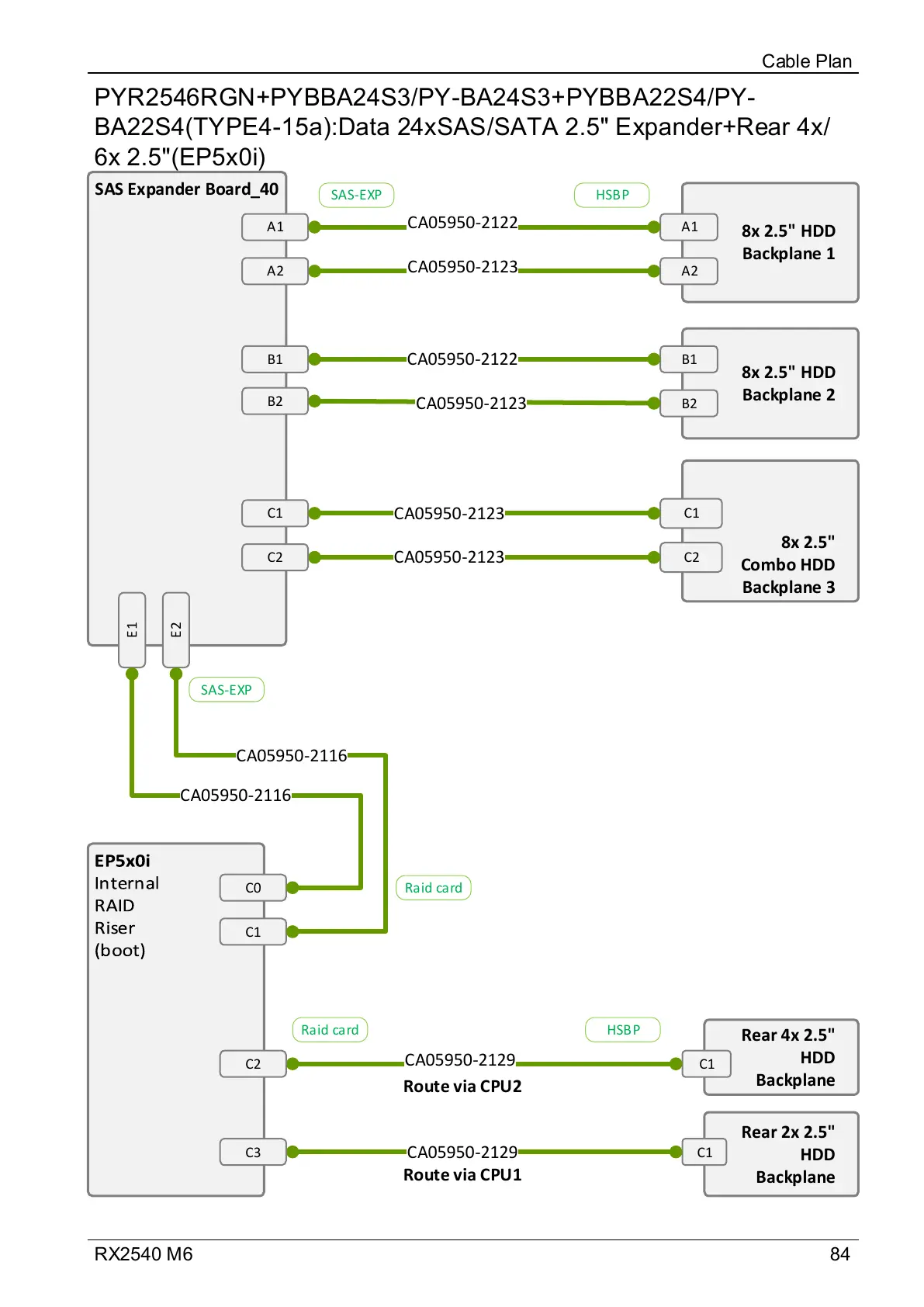

PYR2546RGN+PYBBA24S3/PY-BA24S3+PYBBA22S4/PY-
BA22S4(TYPE4-15a):Data 24xSAS/SATA 2.5" Expander+Rear 4x/
6x 2.5"(EP5x0i)
Cable Plan
Rear 4x 2.5"
HDD
Backplane
C1
CA05950-2129
Rear 2x 2.5"
HDD
Backplane
C1
CA05950-2129
SAS Expander Board_40
A1
8x 2.5" HDD
Backplane 1
A1
CA05950-2123
CA05950-2122
8x 2.5" HDD
Backplane 2
C0
E1 E2
C1
CA05950-2116
CA05950-2116
A2
B1
B2
A2
B1
B2
CA05950-2122
CA05950-2123
8x 2.5"
Combo HDD
Backplane 3
C1
C2
C1
CA05950-2123
CA05950-2123
C2
C2
C3
Raid card
SAS-EXP
SAS-EXP HSBP
Raid card HSBP
Route via CPU2
Route via CPU1

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
