Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

▶
BIOS settings are automatically reloaded. Time and date must be set
manually
, see "Verifying the system time settings" on page 100.
16.4 Trusted Platform Module (TPM)
16.4.1 TPM kit

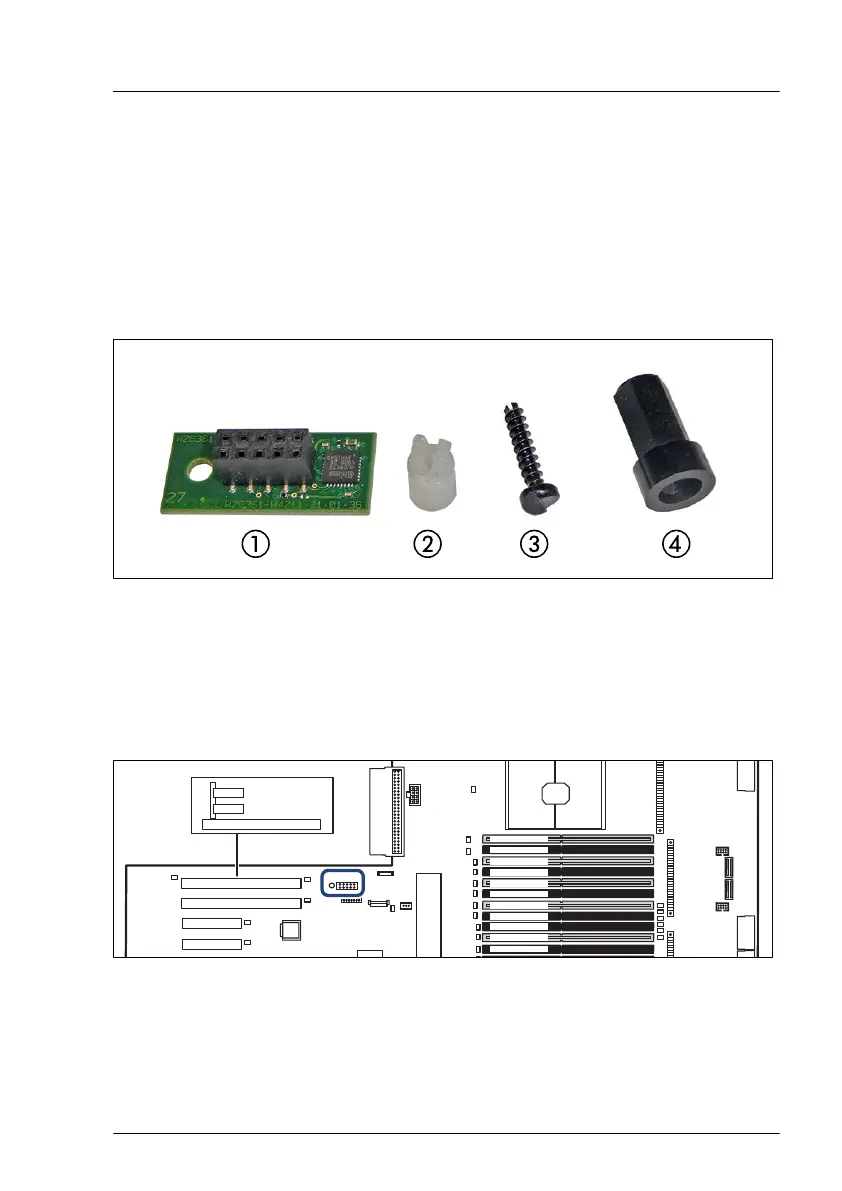

Figure 336: TPM installation kit
1 TPM
2 TPM spacer
3
Special screw for TPM
4 TPM bit insert for TPM special screw
16.4.2 Position of the TPM
iRMC
external connectors
TPM
Slot 8 (CPU 2) Riser slot 2
Front Panel
PSU2
Micro
SD
Slot 7 (CPU2)
Slot 6 (CPU2)
Slot 5 (CPU2)
SSD1
CPU 2
CPU 1 DIMM 2A
CPU 1 DIMM 1A
CPU 1 DIMM 2B
CPU 1 DIMM 1B
CPU 2 DIMM 1R
CPU 2 DIMM 2N
CPU 2 DIMM 2P
CPU 2 DIMM 1P
CPU 2 DIMM 2R
CPU 2 DIMM 1N
CPU 2 DIMM 1Q
CPU 2 DIMM 2Q
SLIMLINE
4 (CPU 2)
LC2
PWR10
HDD LED3
PWR4PWR3
PWR2
SLIMLINE
3 (CPU 2)
FAN5_SYS
FAN4_SYS
SMB 3
Slot riser card
Riser card
Slot 10
Slot 9
Figure 337: Position of the system board
System board and components
RX2540 M6 Upgrade and Maintenance Manual 479

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
