4.12 Handling the air duct
4.12.1 Removing the air duct

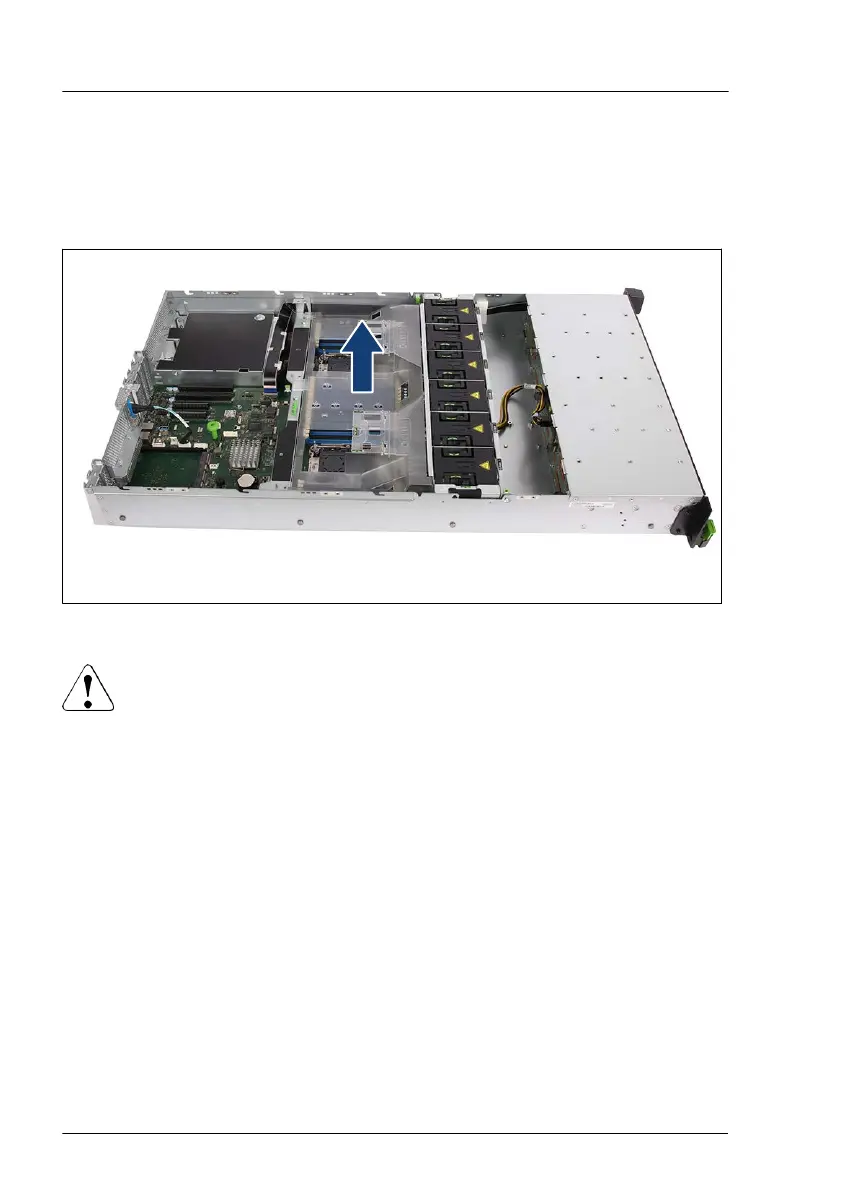

Figure 30: Removing the air duct
CAUTION
▶
Be careful with the FBU cable.
▶
If an FBU is installed, first follow the procedure that is described in
"Removing the FBU with the FBU holder" on page 324.
▶
Carefully pull out the air duct upward.
Basic hardware procedures
78 Upgrade and Maintenance Manual RX2540 M6
