Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

Removing a memory module

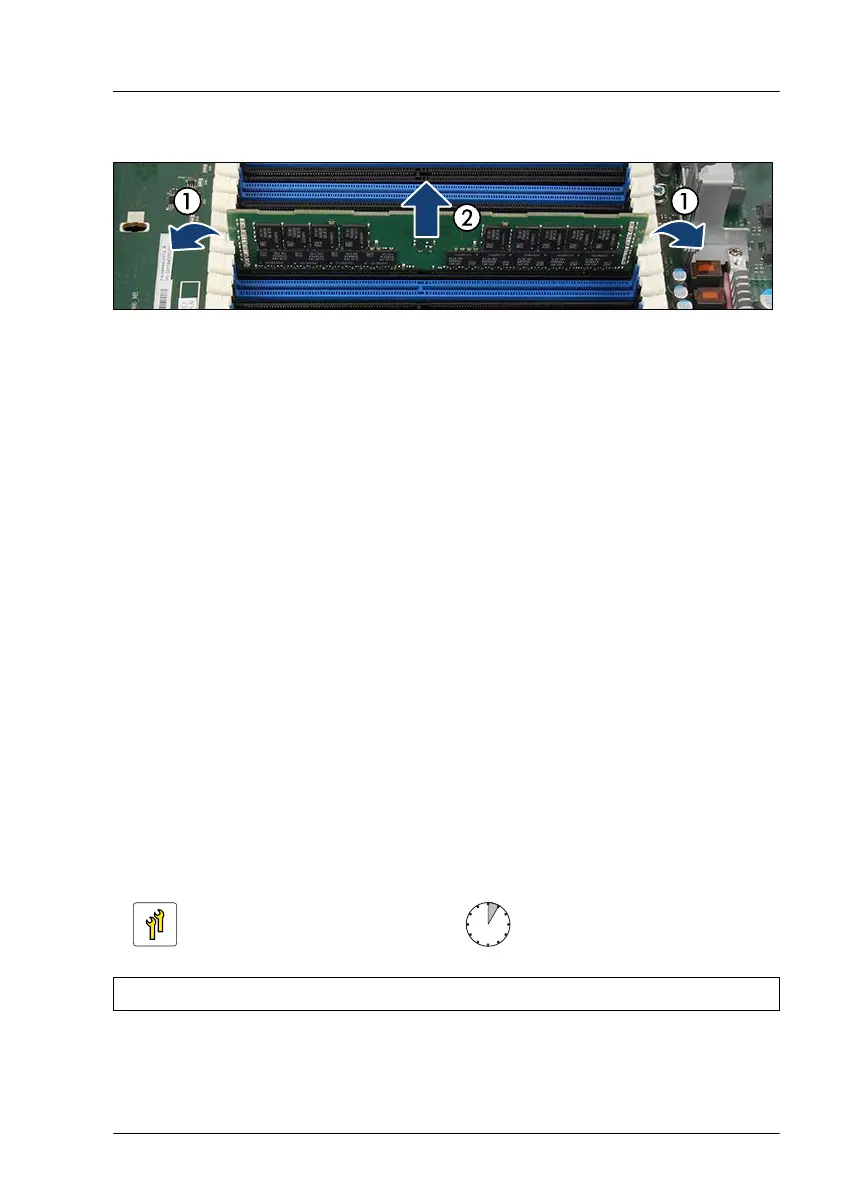

Figure 217: Removing memory modules
▶
Eject the desired memory module by pressing out the securing clips at each
end of the memory slot (1).
▶
Remove the ejected memory module (2).
▶
If applicable, install a dummy module, see "Installing a memory dummy
module" on page
343.
Concluding steps
▶
"Installing the air duct" on page
79.
▶
"Reassembling" on page 60.
▶
"Connecting the power cord" on page 65.
▶
"Switching on the server" on page 69.
▶
If applicable, "Installing the front cover with lock" on page 69.
▶
"Resuming BitLocker functionality" on page 105.
10.5 Replacing memory modules
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver (for cover 2)
Main memory
RX2540 M6 Upgrade and Maintenance Manual 341

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
