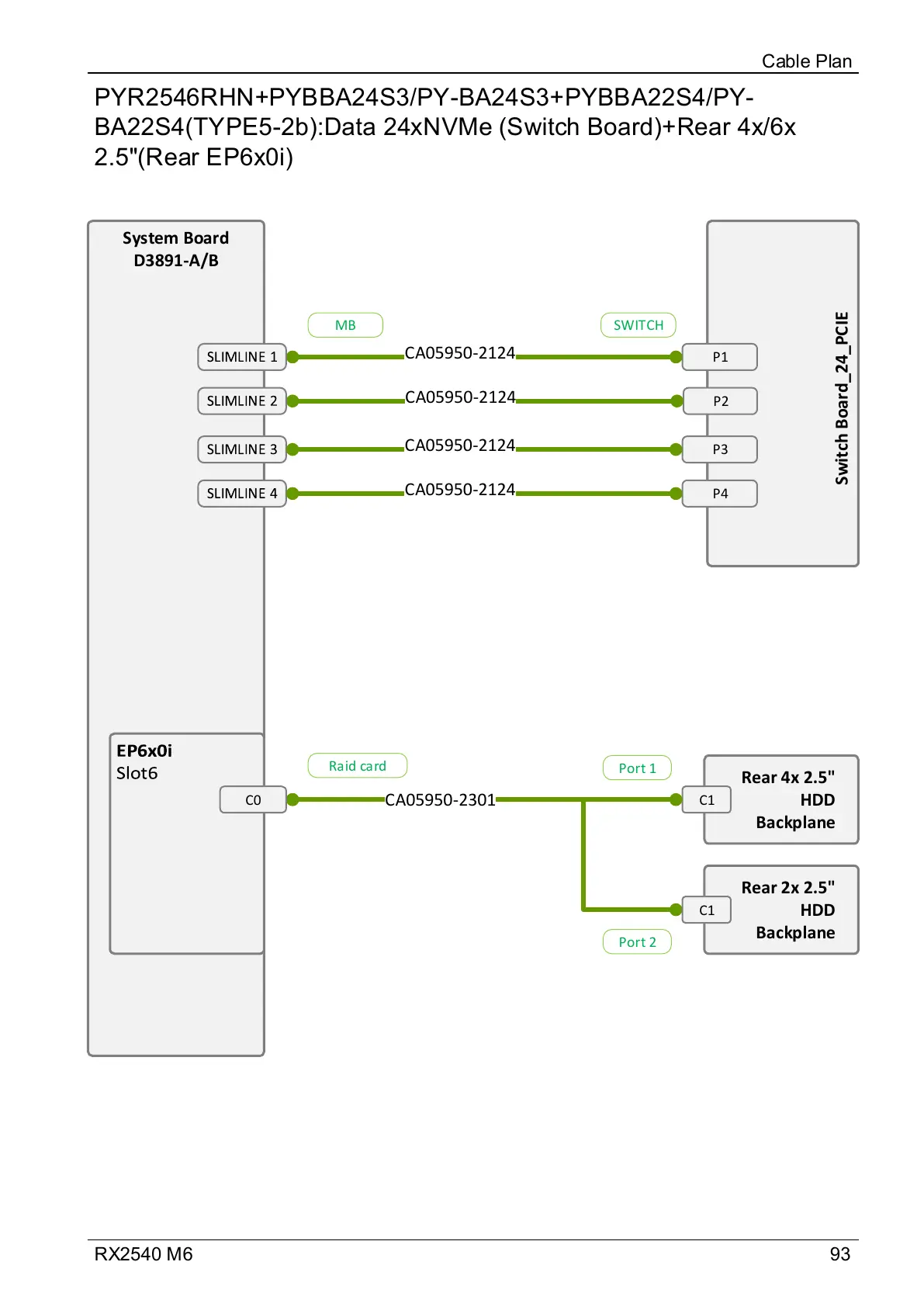

93RX2540 M6
PYR2546RHN+PYBBA24S3/PY-BA24S3+PYBBA22S4/PY-
BA22S4(TYPE5-2b):Data 24xNVMe (Switch Board)+Rear 4x/6x
2.5"(Rear EP6x0i)
Cable Plan
Rear 4x 2.5"
HDD
Backplane
C1
Rear 2x 2.5"
HDD
Backplane
CA05950-2301
System Board
D3891-A/B
Switch Board_24_PCIE
C0
P1
P2
CA05950-2124
CA05950-2124
P3
P4
CA05950-2124
CA05950-2124
C1
Port 1
Port 2
MB SWITCH
Raid card
