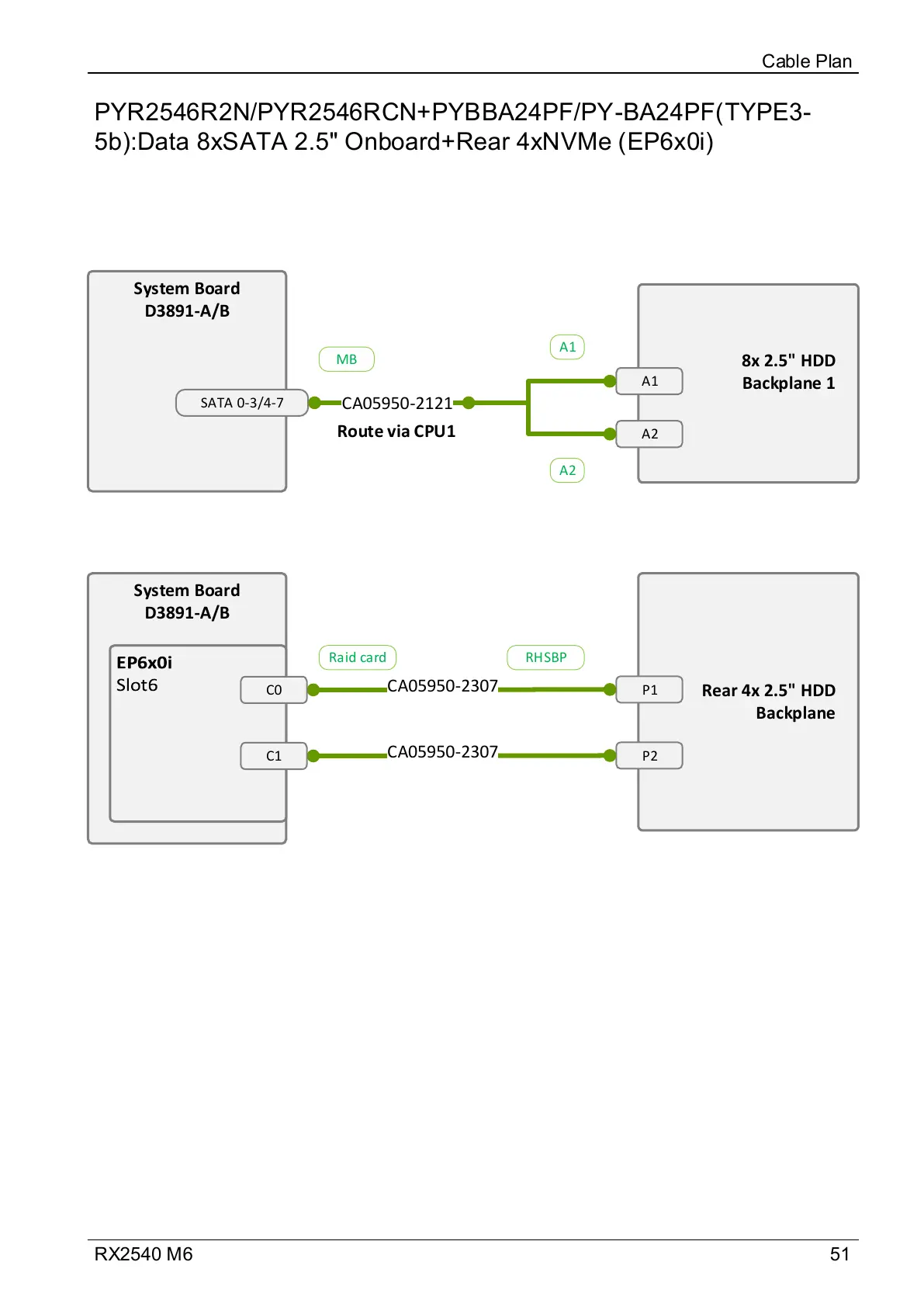

51RX2540 M6
PYR2546R2N/PYR2546RCN+PYBBA24PF/PY-BA24PF(TYPE3-
5b):Data 8xSATA 2.5" Onboard+Rear 4xNVMe (EP6x0i)
Cable Plan
System Board
D3891-A/B
SATA 0-3/4-7
8x 2.5" HDD
Backplane 1
A1
A2
CA05950-2121
A1
A2
System Board
D3891-A/B
Rear 4x 2.5" HDD
Backplane
P1
CA05950-2307
P2
CA05950-2307
C0
C1
MB
Raid card RHSBP
Route via CPU1
