56RX2540 M6

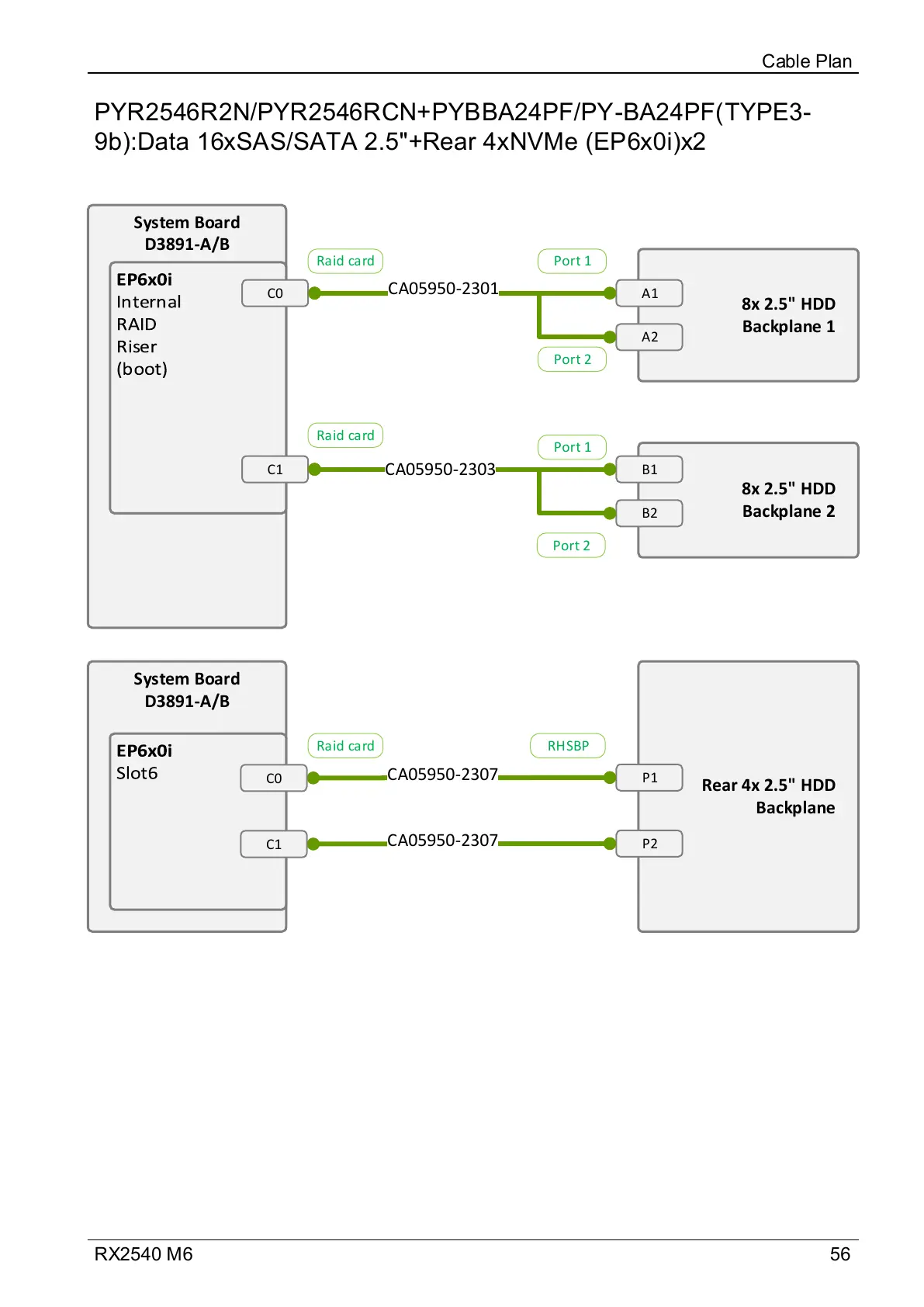

PYR2546R2N/PYR2546RCN+PYBBA24PF/PY-BA24PF(TYPE3-
9b):Data 16xSAS/SATA 2.5"+Rear 4xNVMe (EP6x0i)x2
Cable Plan
System Board
D3891-A/B
C0
8x 2.5" HDD
Backplane 1
A1
A2
CA05950-2301
8x 2.5" HDD
Backplane 2
B1
B2
C1
CA05950-2303
System Board
D3891-A/B
Rear 4x 2.5" HDD
Backplane
P1
CA05950-2307
P2
CA05950-2307
C0
C1
Port 1
Port 2
Port 1
Port 2
Raid card
Raid card
Raid card RHSBP
