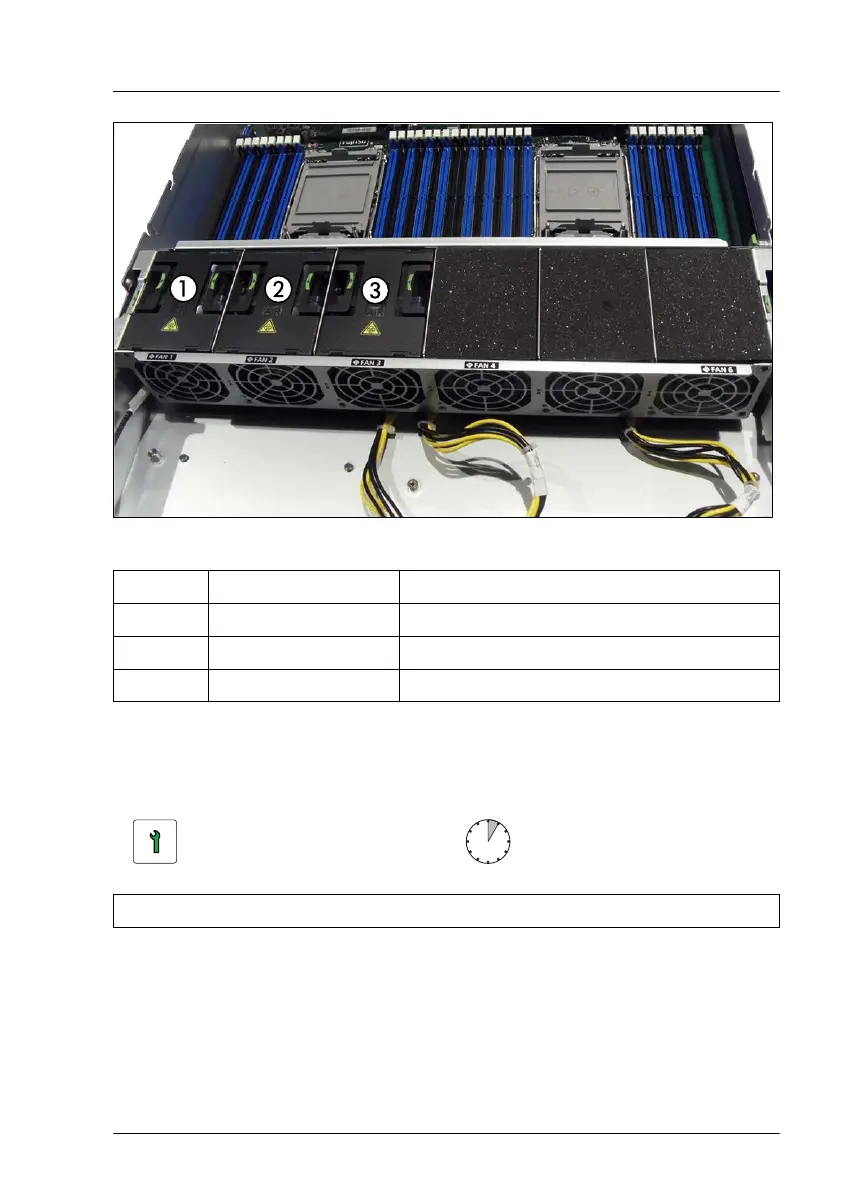

Figure 126: Fan bays occupied with fan cage foams
Pos. CPU Dual rotor fans
1 CPU 1 fan 1 (A/B)
2 CPU 1 fan 2 (A/B)
3 CPU 1 fan 3 (A/B)
8.3 Replacing a fan module
Customer Replaceable
Unit (CRU)
Hardware: 5 minutes
Tools: tool-less
Preliminary steps
▶
"Locating the defective server" on page 49
.
▶
If applicable, "Removing the front cover with lock" on page 52.
Fans
