Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

87RX2540 M6

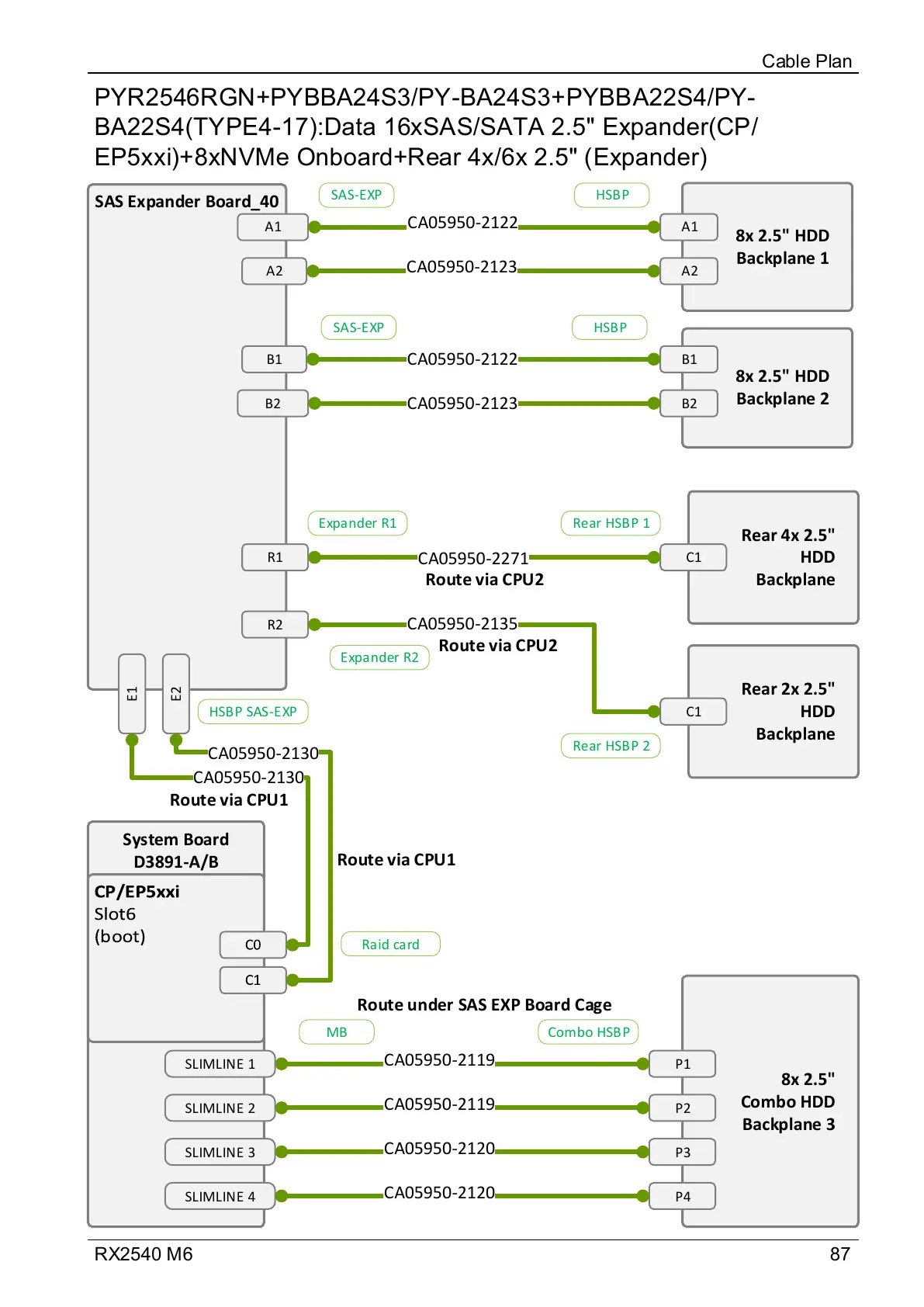

PYR2546RGN+PYBBA24S3/PY-BA24S3+PYBBA22S4/PY-
BA22S4(TYPE4-17):Data 16xSAS/SATA 2.5" Expander(CP/
EP5xxi)+8xNVMe Onboard+Rear 4x/6x 2.5" (Expander)
Cable Plan
System Board
D3891-A/B
SAS Expander Board_40
A1
8x 2.5" HDD
Backplane 1
A1
CA05950-2123
CA05950-2122
8x 2.5" HDD
Backplane 2
E1 E2
CA05950-2130
CA05950-2130
A2
B1
B2
A2
B1
B2
CA05950-2122
CA05950-2123
8x 2.5"
Combo HDD
Backplane 3
P1
P2
CA05950-2119
CA05950-2119
SLIMLINE 1
SLIMLINE 2
SLIMLINE 3
SLIMLINE 4
P3
P4
CA05950-2120
CA05950-2120
R1
R2
Rear 4x 2.5"
HDD
Backplane
Rear 2x 2.5"
HDD
Backplane
C1
C1
CA05950-2271
CA05950-2135
SAS-EXP HSBP
SAS-EXP HSBP
Expander R1 Rear HSBP 1
Expander R2
Rear HSBP 2
Raid card
HSBP SAS-EXP
MB Combo HSBP
Route via CPU2
Route via CPU1
Route via CPU2
Route via CPU1
Route under SAS EXP Board Cage

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
