Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

7.5.10.2 Installing EDSFF SSD modules
Customer Replaceable
Unit (CRU)
Hardware: 5 minutes
Tools: tool-less
The EDSFF SSD module is controlled by an onboard controller. For
more information, see the Intel VROC user guide. If VMD function is
disabled in BIOS, the EDSFF SSD module is not supported. If VMD
function is enabled in BIOS, see the "Intel Virtual RAID on CPU (Intel
VROC) User Guide” for more information.
Preliminary steps
▶
If applicable, "Removing the front cover with lock" on page 52
.
▶
Locate the correct drive bay, see "Overview of configurations" on page 188.
▶
Depending on your OS: "Shutting down the server" on page 52.
Removing an EDSFF dummy module

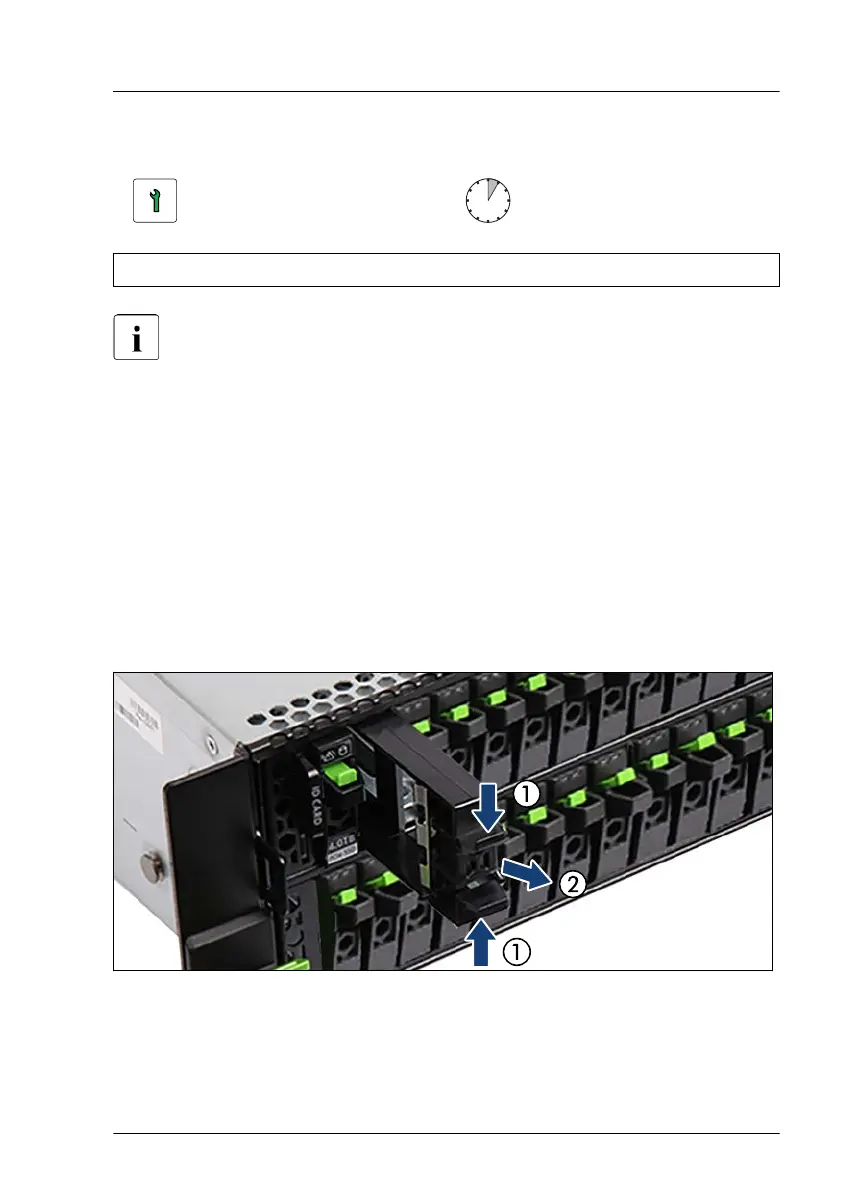

Figure 93: Removing an EDSFF dummy module
▶
Press both tabs together (1) and pull the dummy module out of its bay (2).
Hard disk drive (HDD) / solid state disk (SSD)
RX2540 M6 Upgrade and Maintenance Manual 191

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
