Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

60RX2540 M6

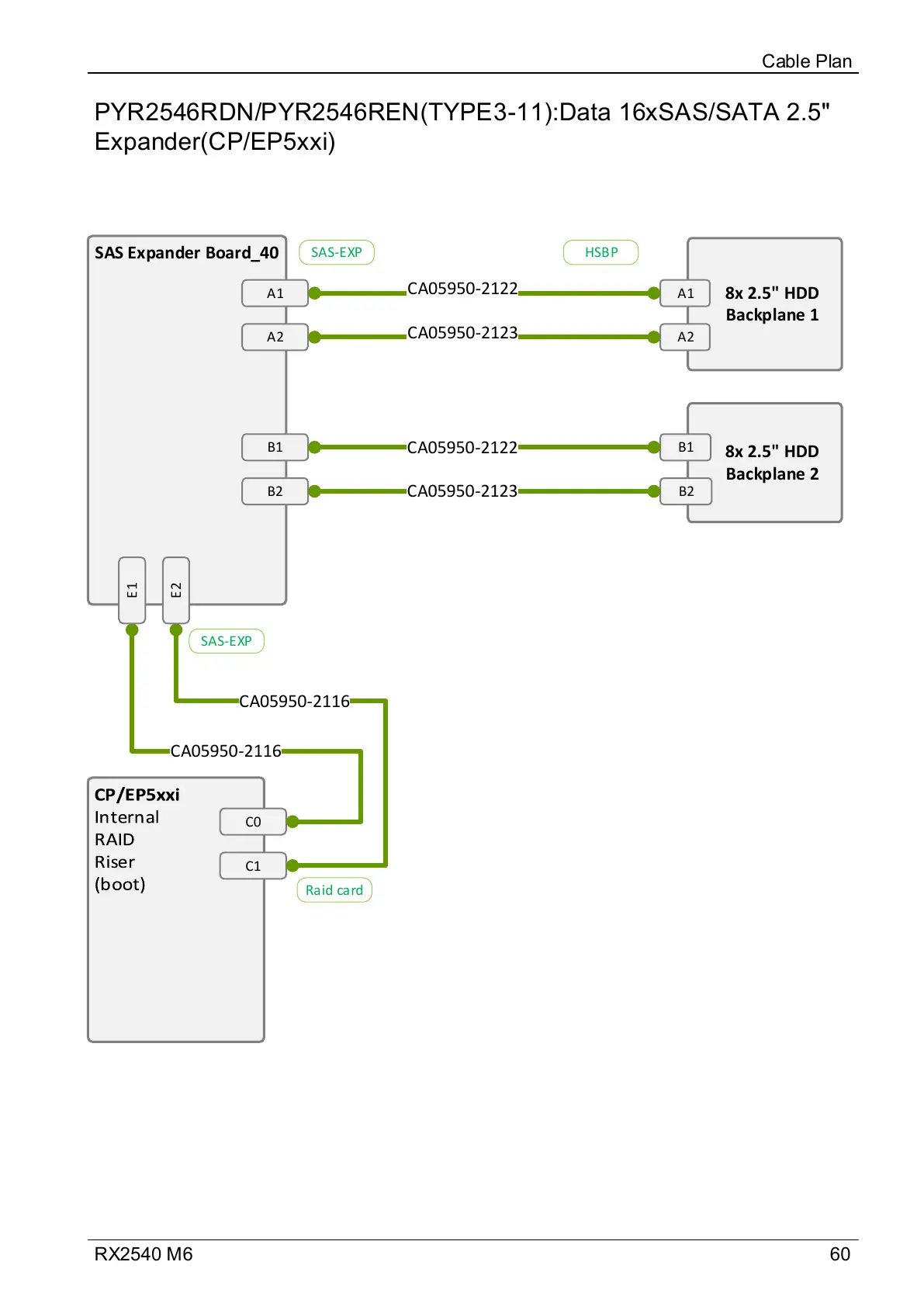

PYR2546RDN/PYR2546REN(TYPE3-11):Data 16xSAS/SATA 2.5"
Expander(CP/EP5xxi)
Cable Plan
SAS Expander Board_40
A1
8x 2.5" HDD
Backplane 1
A1
CA05950-2123
CA05950-2122
8x 2.5" HDD
Backplane 2
C0
C1
CA05950-2116
CA05950-2116
A2
B1
B2
A2
B1
B2
CA05950-2122
CA05950-2123
E1 E2
Raid card
SAS-EXP
SAS-EXP HSBP

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
