Fujitsu PRIMERGY RX2540 M6

66RX2540 M6
PYR2546RFN+PYBBA24S3/PY-BA24S3+PYBBA22S4/PY-
BA22S4(TYPE4-3a):Data 24xSAS/ATA 2.5"+Rear 4xSAS/SATA 2.5"
(EP5x0i)x2

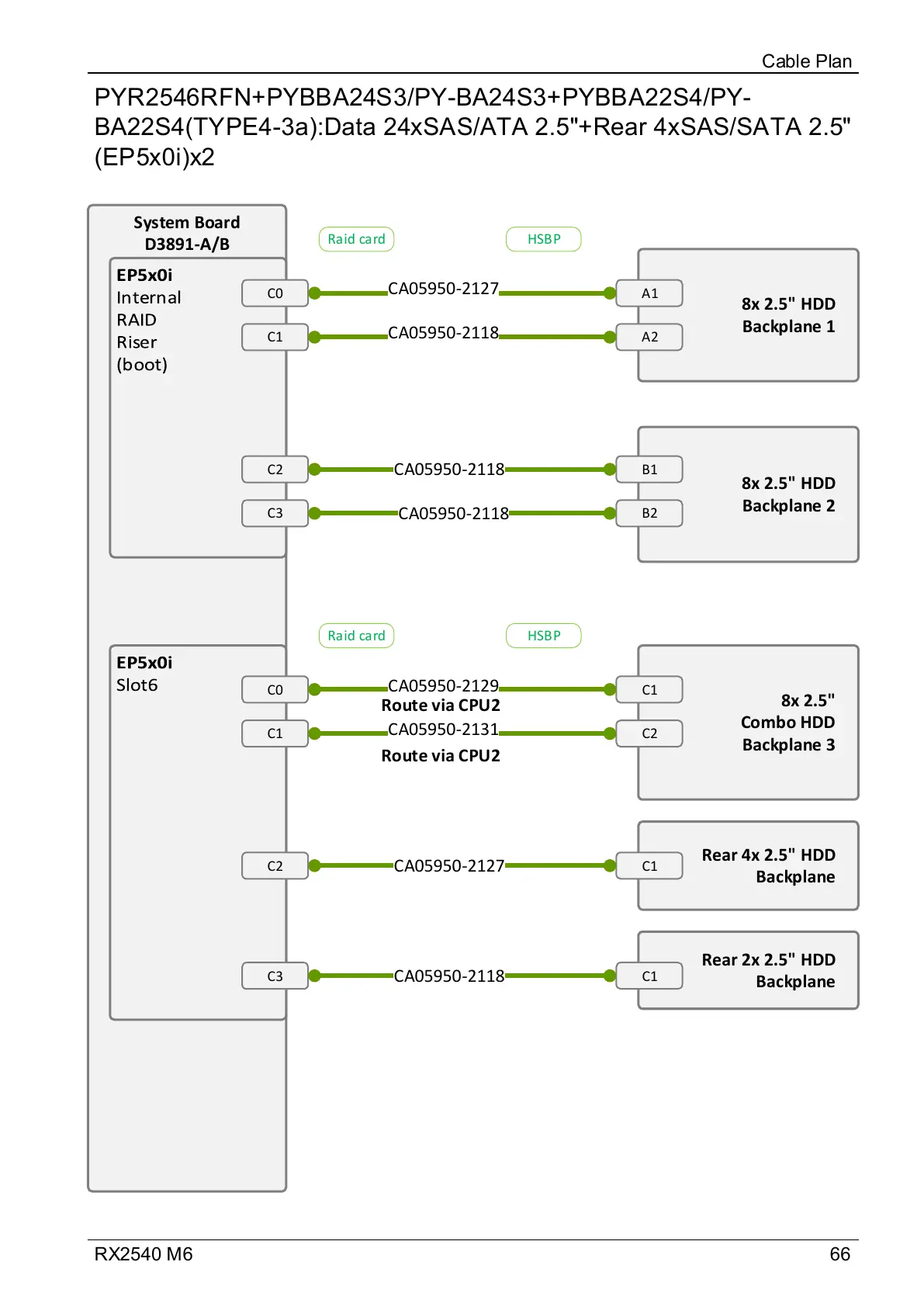

Cable Plan
System Board
D3891-A/B
C0
C1
8x 2.5" HDD
Backplane 1
A1
A2
CA05950-2118
CA05950-2127
8x 2.5" HDD
Backplane 2
B1
B2
C2
C3
CA05950-2118
CA05950-2118
8x 2.5"
Combo HDD
Backplane 3
C1
C2
C0
C1
CA05950-2129
CA05950-2131
Rear 4x 2.5" HDD
Backplane
C1
Rear 2x 2.5" HDD
Backplane
C1
CA05950-2127
C2
C3
CA05950-2118
Raid card HSBP
Raid card HSBP
Route via CPU2
Route via CPU2
