Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

57RX2540 M6

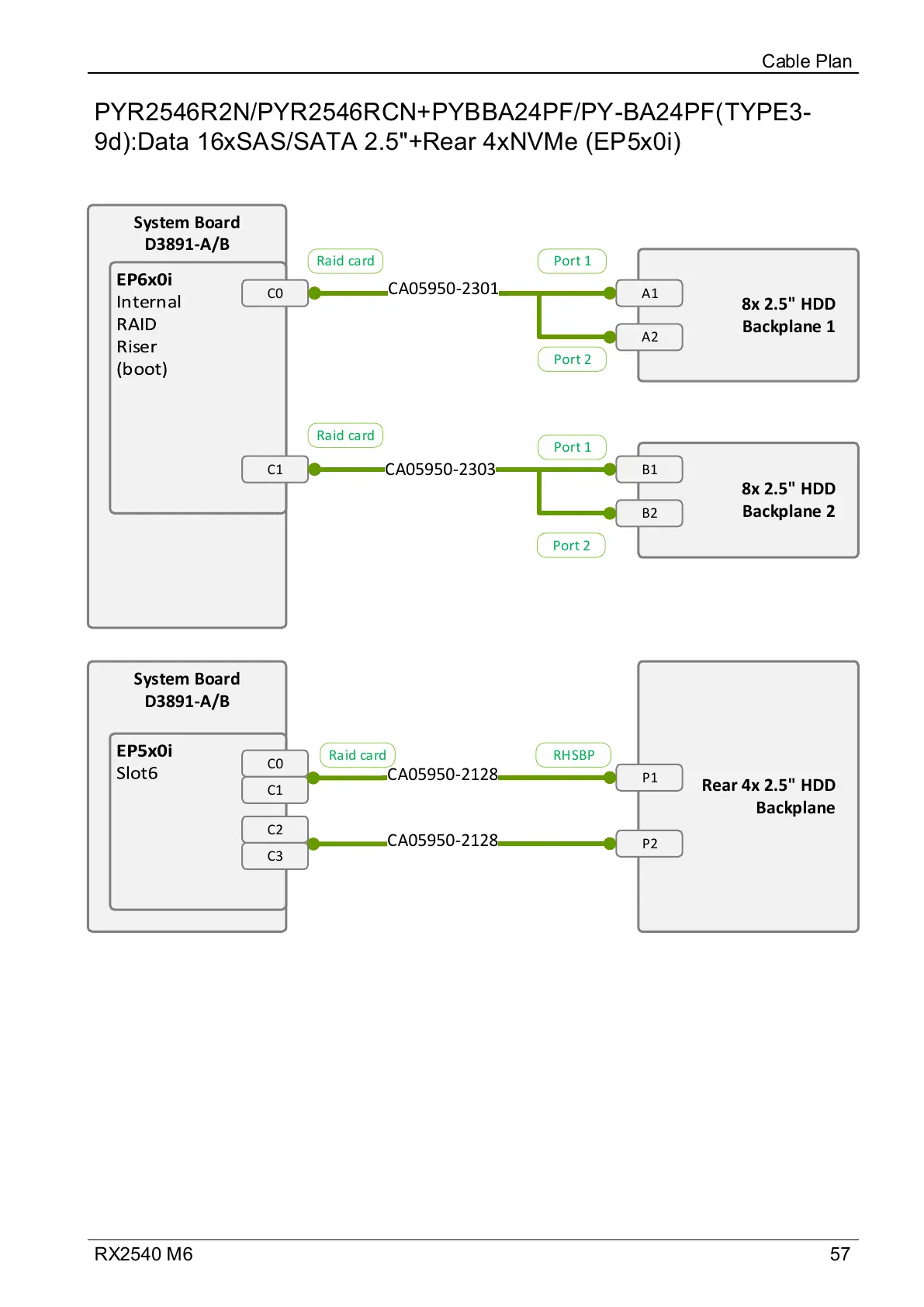

PYR2546R2N/PYR2546RCN+PYBBA24PF/PY-BA24PF(TYPE3-
9d):Data 16xSAS/SATA 2.5"+Rear 4xNVMe (EP5x0i)
Cable Plan
System Board
D3891-A/B
C0
8x 2.5" HDD
Backplane 1
A1
A2
CA05950-2301
8x 2.5" HDD
Backplane 2
B1
B2
C1
CA05950-2303
Rear 4x 2.5" HDD
Backplane
P1
P2
Port 1
Port 2
Port 1
Port 2
Raid card
Raid card
System Board
D3891-A/B
C1
CA05950-2128
CA05950-2128
C0
C2
C3
Raid card RHSBP

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
