PYR2546R2N/PYR2546RCN+PYBBA24PF/PY-
BA24PF+PYBBA22P2/PY-BA22P2(TYPE3-10a):Data 16xSAS/
SATA 2.5" (EP5x0i)+Rear 4x/6x NVMe (Retimer)

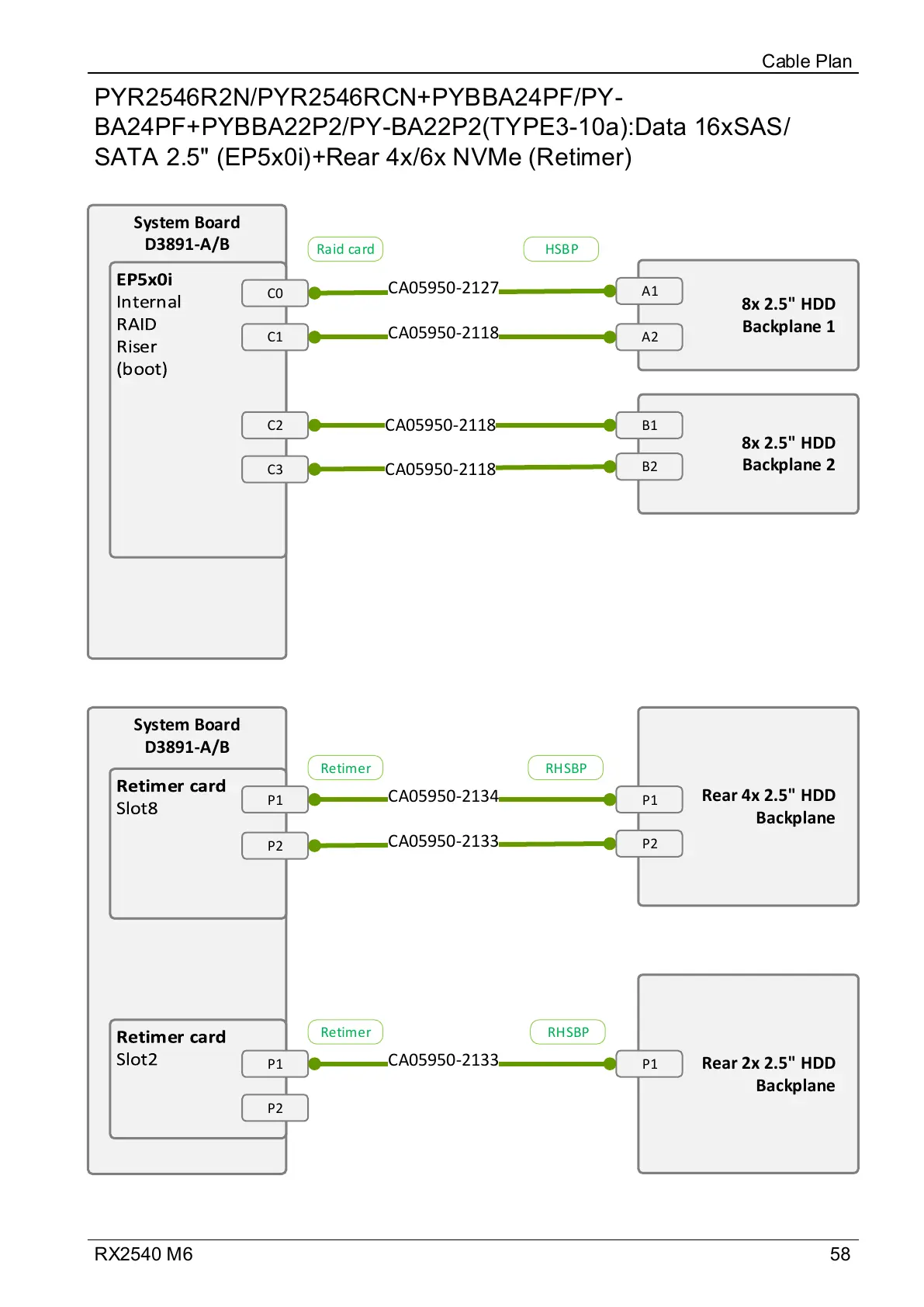

Cable Plan
System Board
D3891-A/B
C0
C1
8x 2.5" HDD
Backplane 1
A1
A2
CA05950-2118
CA05950-2127
8x 2.5" HDD
Backplane 2
B1
B2
C2
C3
CA05950-2118
CA05950-2118
System Board
D3891-A/B
P1
P2
Rear 4x 2.5" HDD
Backplane
P1
CA05950-2134
Rear 2x 2.5" HDD
Backplane
P1
CA05950-2133
P2
P1
P2
CA05950-2133
Raid card HSBP
Retimer RHSBP
Retimer RHSBP
