34RX2540 M6

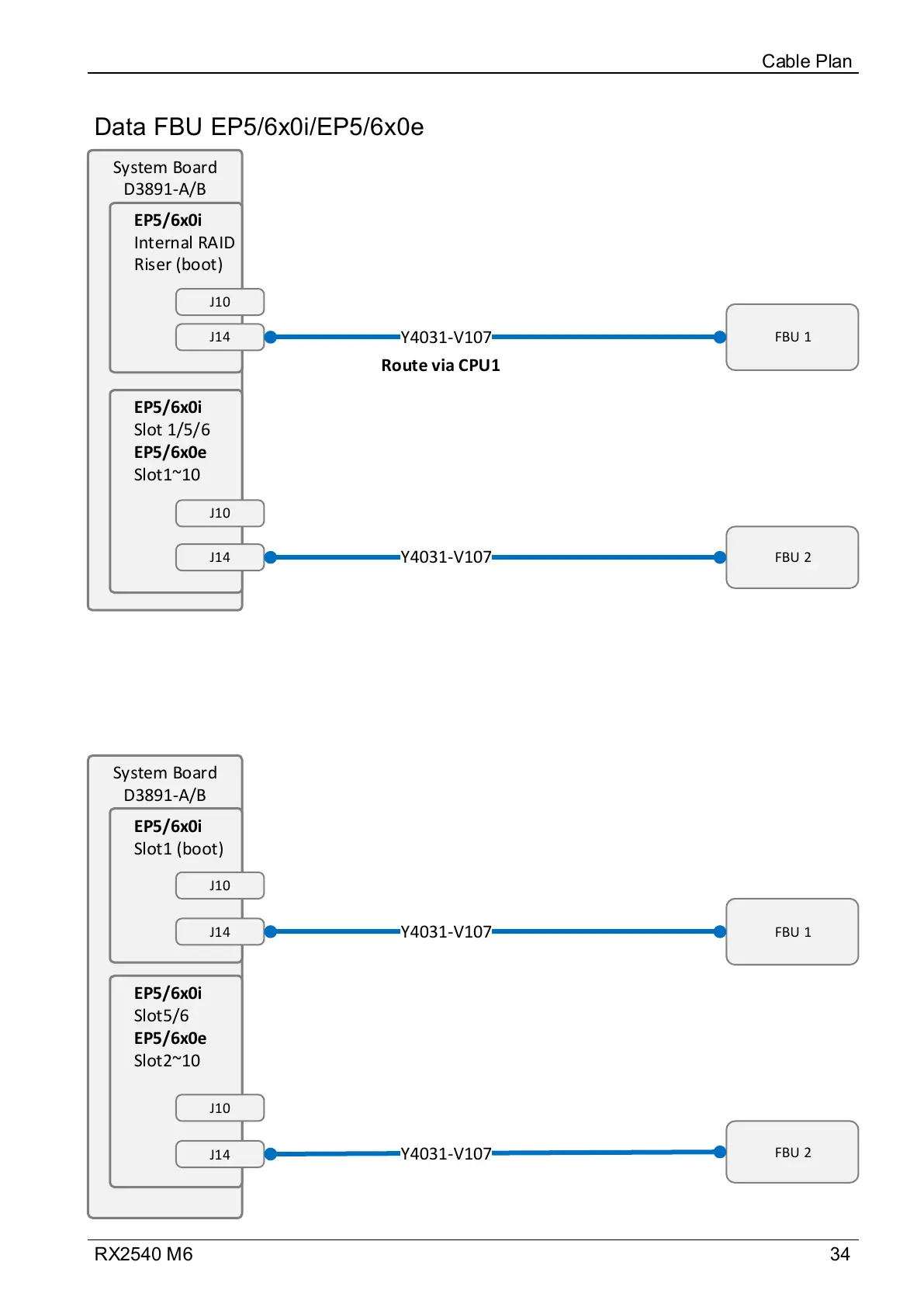

Data FBU EP5/6x0i/EP5/6x0e
Cable Plan
System Board
D3891-A/B
EP5/6x0i
Internal RAID
Riser (boot)
J14 FBU 1
Y4031-V107
J10
EP5/6x0i
Slot 1/5/6
EP5/6x0e
Slot1~10
J14 FBU 2
Y4031-V107
System Board
D3891-A/B
EP5/6x0i
Slot1 (boot)
J14 FBU 1
Y4031-V107
J10
EP5/6x0i
Slot5/6
EP5/6x0e
Slot2~10
J14
FBU 2
Y4031-V107
J10
J10
Route via CPU1
