Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

▶
Press the two green buttons inward to release the locking mechanism (1).
▶
Fold the cover 1 up (2).
▶
Remove the cover 1 upward (3).
Removing the cover 2

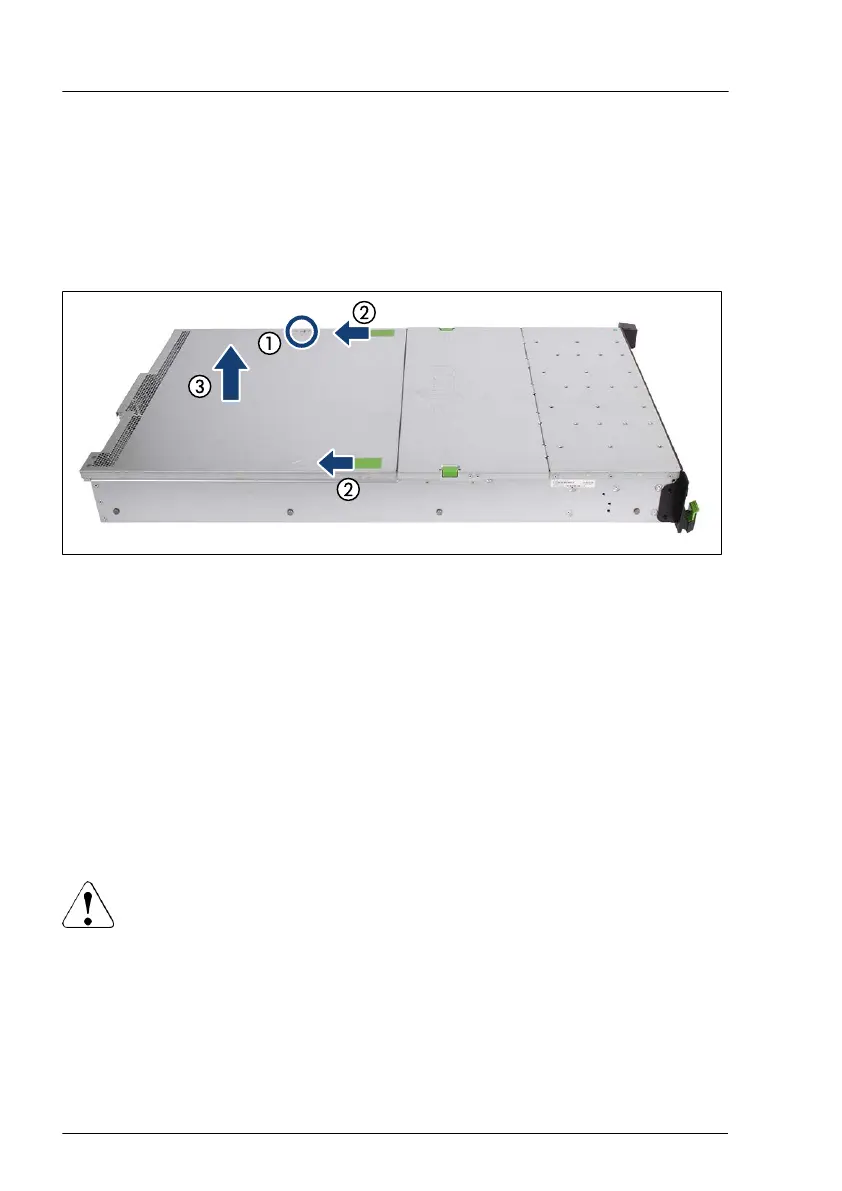

Figure 10: Removing the cover 2
▶
Loosen the screw (1).
▶
Push the cover 2 to the rear side using the green touch points (2).
▶
Remove the cover 2 upward (3).
4.6
Reassembling
4.6.1
Safety notes
CAUTION
▶
Before attaching the covers, make sure no unnecessary parts or
tools are left inside the server
.
▶
The top cover must be replaced as soon as possible for purposes
of cooling, to comply with EMC regulations (regulations regarding
electromagnetic compatibility) and to prevent fires.
▶
For more information, see "Important information" on page 35
.
Basic hardware procedures
60 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
