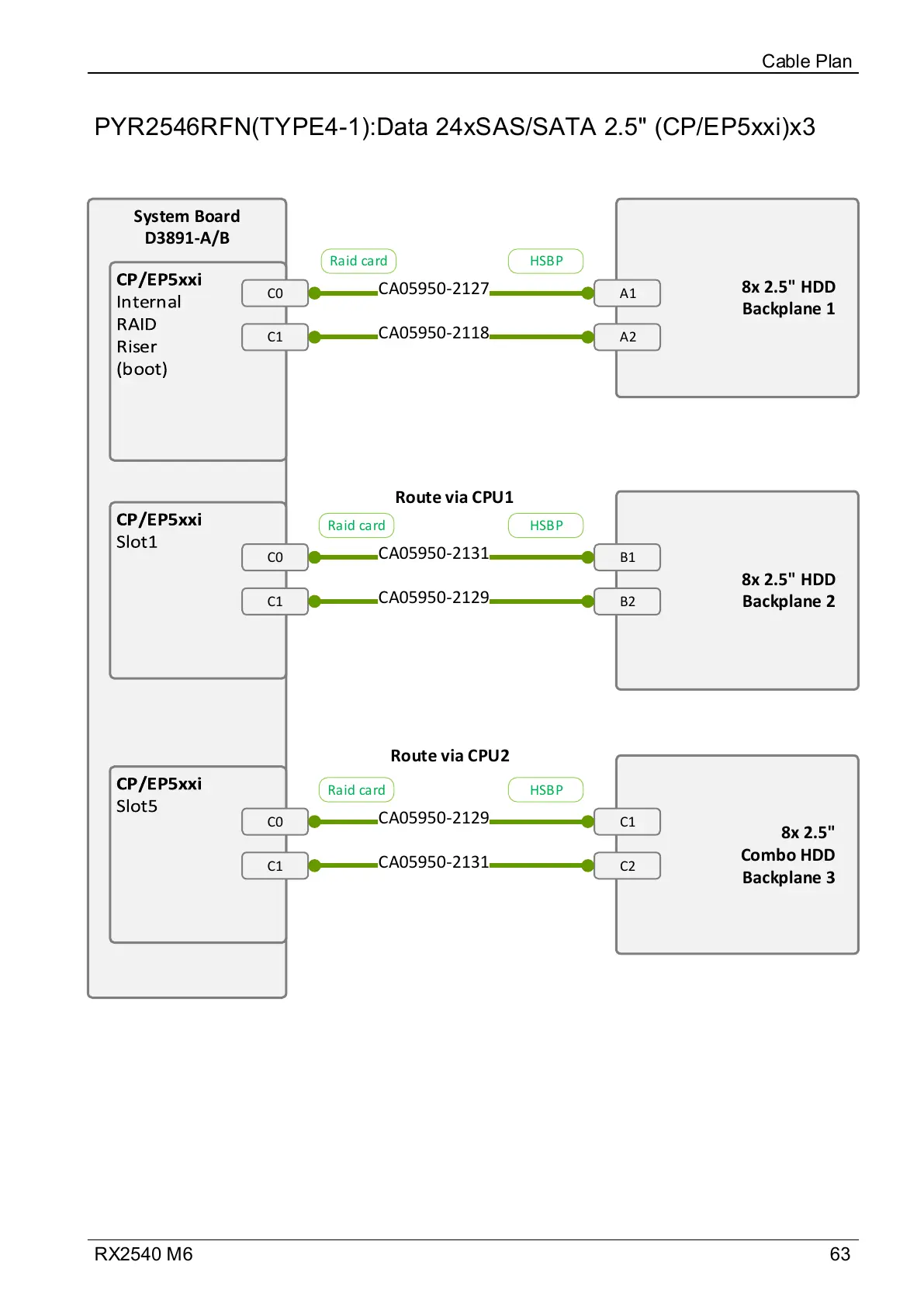

PYR2546RFN(TYPE4-1):Data 24xSAS/SATA 2.5" (CP/EP5xxi)x3
Cable Plan
System Board
D3891-A/B
C0
C1
8x 2.5" HDD
Backplane 1
A1
A2
CA05950-2118
CA05950-2127
8x 2.5" HDD
Backplane 2
B1
B2
C0
C1
CA05950-2131
CA05950-2129
8x 2.5"
Combo HDD
Backplane 3
C1
C2
C0
C1
CA05950-2129
CA05950-2131
Raid card HSBP
Raid card HSBP
Raid card HSBP
Route via CPU1
Route via CPU2
