Fujitsu PRIMERGY RX2540 M6

73RX2540 M6
PYR2546RFN+PYBBA24PF/PY-BA24PF+PYBBA22P2/PY-
BA22P2(TYPE4-8):Data 16xSAS/SATA 2.5" (CP/EP5xxi)x2+8x2.5"
NVMe Onboard+Rear 4x/6x NVMe (Retimer)

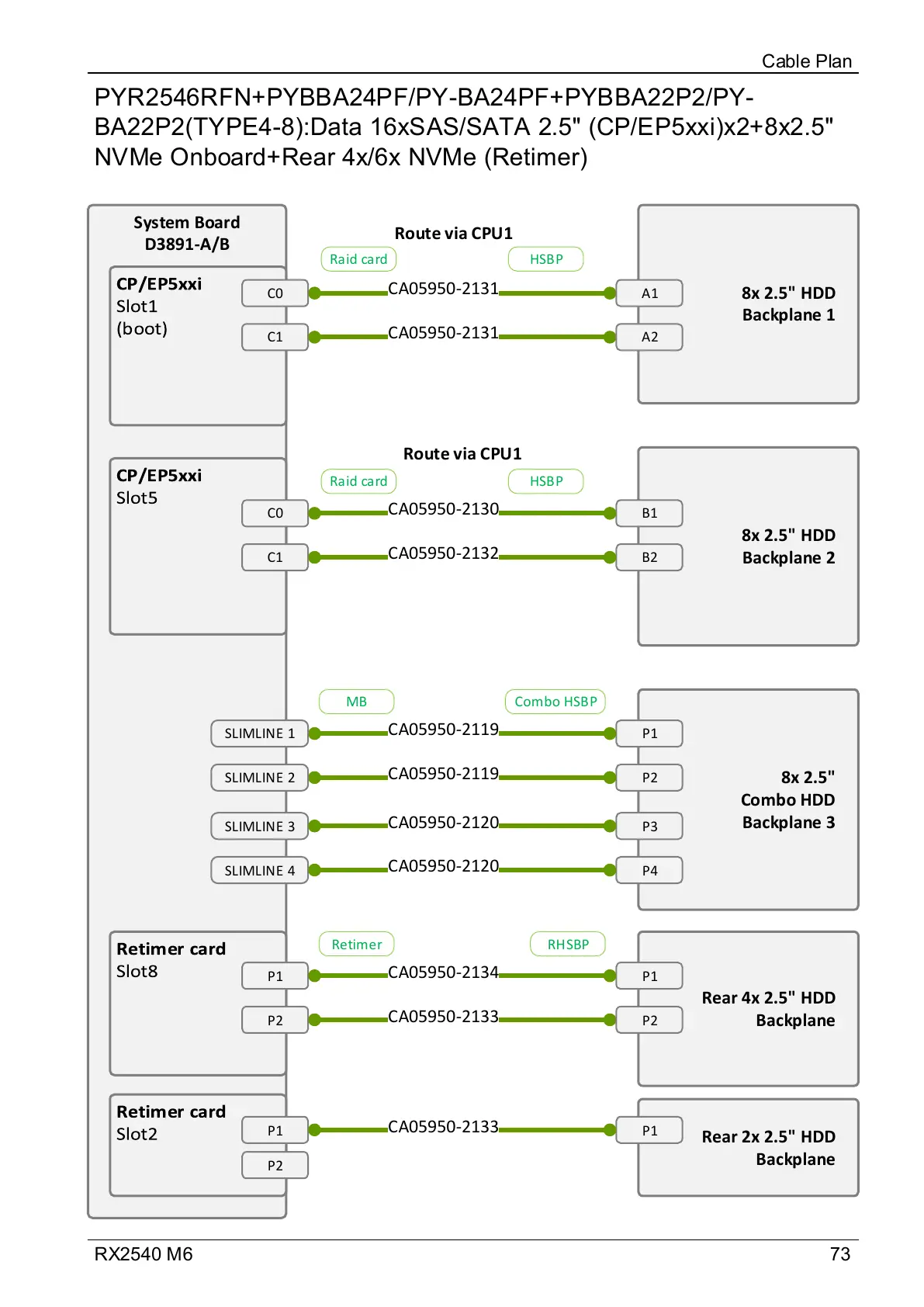

Cable Plan
System Board
D3891-A/B
C0
C1
8x 2.5" HDD
Backplane 2
CA05950-2131
CA05950-2131
8x 2.5"
Combo HDD
Backplane 3
P1
P2
CA05950-2119
CA05950-2119
SLIMLINE 1
SLIMLINE 2
SLIMLINE 3
SLIMLINE 4
P3
P4
CA05950-2120
CA05950-2120
8x 2.5" HDD
Backplane 1
B1
B2
A1
A2
C0
C1
CA05950-2132
CA05950-2130
P1
P2
Rear 4x 2.5" HDD
Backplane
P1
CA05950-2134
Rear 2x 2.5" HDD
Backplane
P1
CA05950-2133
P2
P1
P2
CA05950-2133
Raid card HSBP
Raid card HSBP
MB Combo HSBP
Retimer RHSBP
Route via CPU1
Route via CPU1
