Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

17.1.3.2 Servers with liquid cooling (LC)

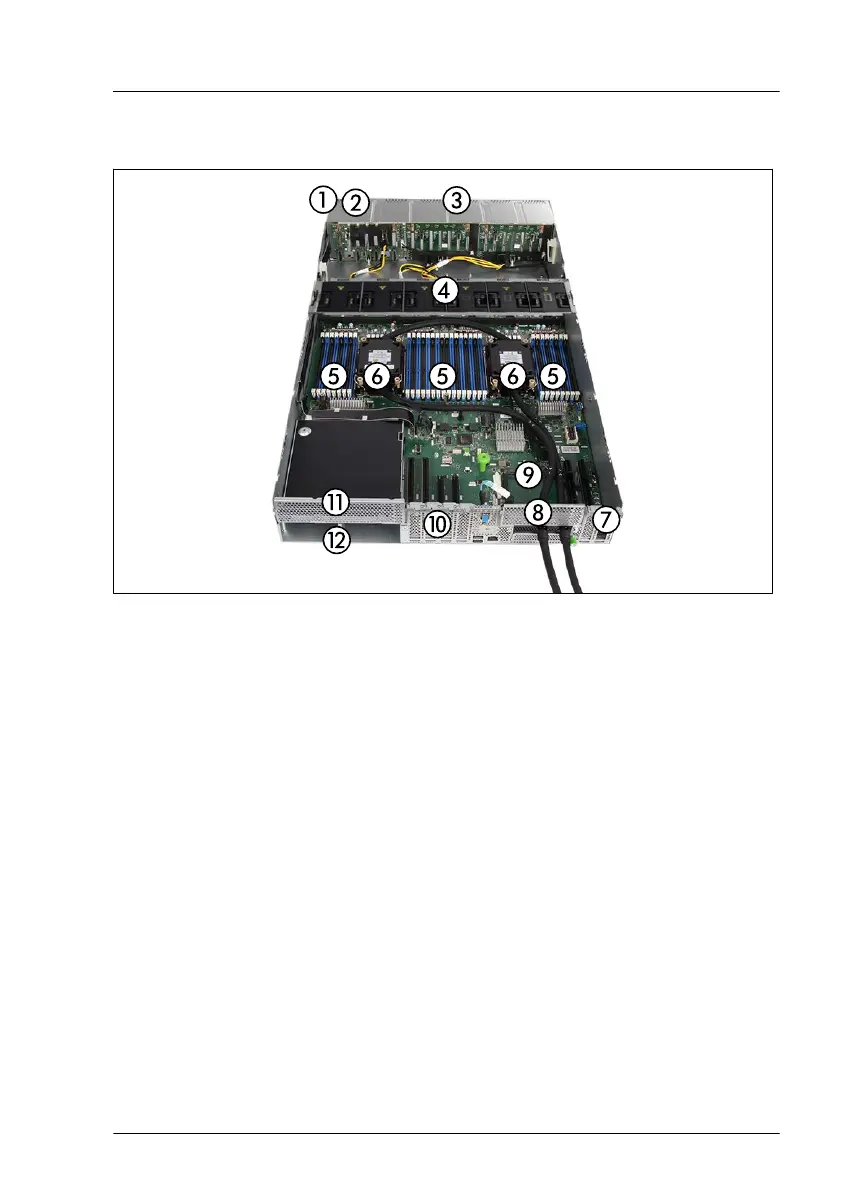

Figure 377: Server interior with liquid cooling
1 Front panel module / front VGA
(option) / dummy cover
2 ODD (option) / dummy cover
3
Up to 12x 3.5-inch HDDs / 24x 2.5-inch
HDDs / 64 EDSFF SSDs
4 Fan modules
5 Main memory
6 CPUs with LC
7 PCIe slot 1-2
8 PCIe slots 3 or 3/4 / Riser module 1
9
OCP module
2
10 PCI slots 5-8
11 PCIe slots 9 or 9/10 / Riser module 2
12 Up to 2 PSUs / dummy cover
2
)
The OCP module is an option.
Appendix A
RX2540 M6 Upgrade and Maintenance Manual 541

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
