PYR2546RBN(TYPE2-5):Data 12xSAS/SATA 3.5" Expander (CP/EP
5xxi)

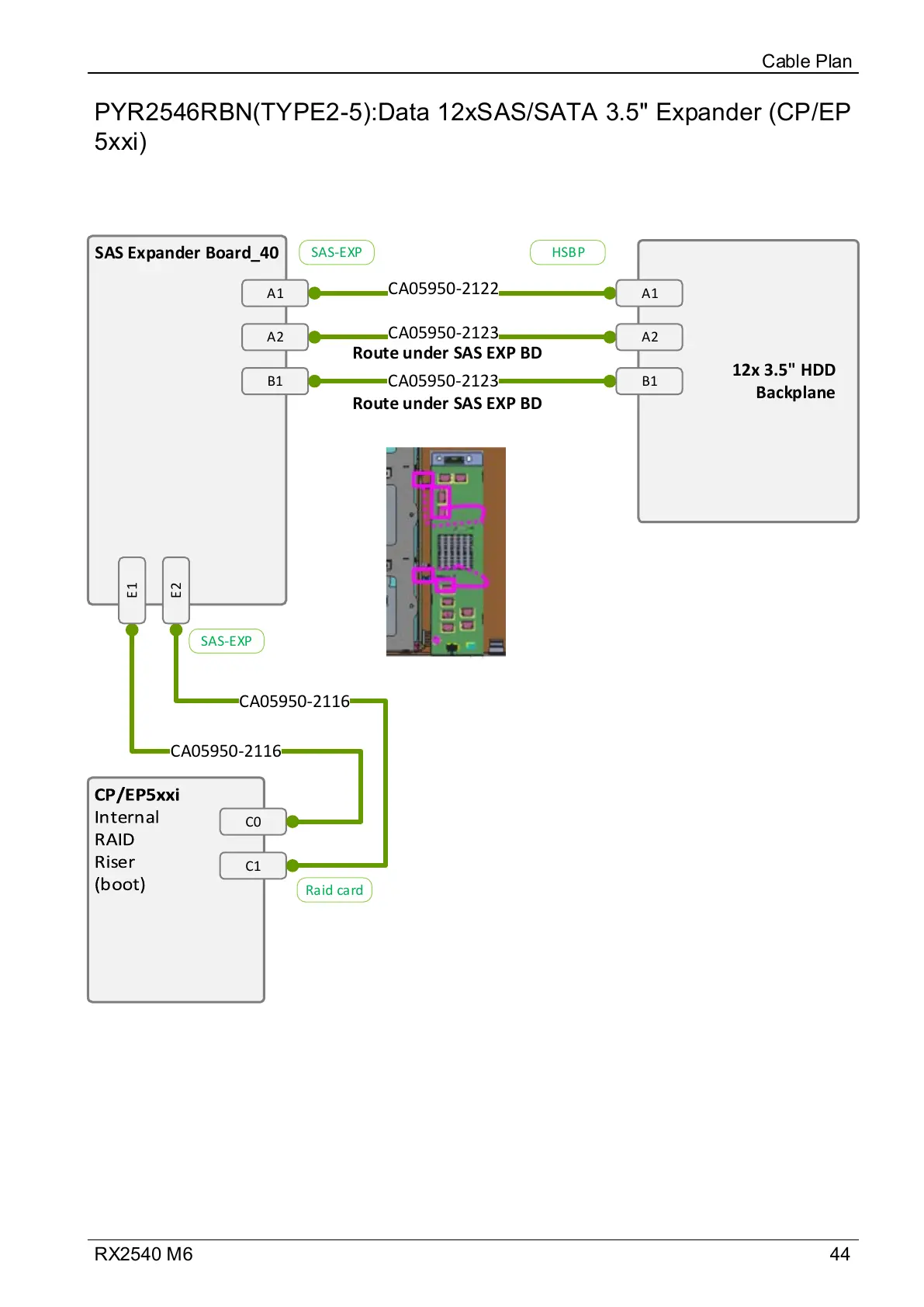

Cable Plan
SAS Expander Board_40
A1
CA05950-2123
CA05950-2122
C0
C1
CA05950-2116
CA05950-2116
A2
B1
CA05950-2123
E1 E2
12x 3.5" HDD
Backplane
A1
A2
B1
Raid card
SAS-EXP
SAS-EXP HSBP
Route under SAS EXP BD
Route under SAS EXP BD
