Fujitsu PRIMERGY RX2540 M6

Removing the SAS expander board

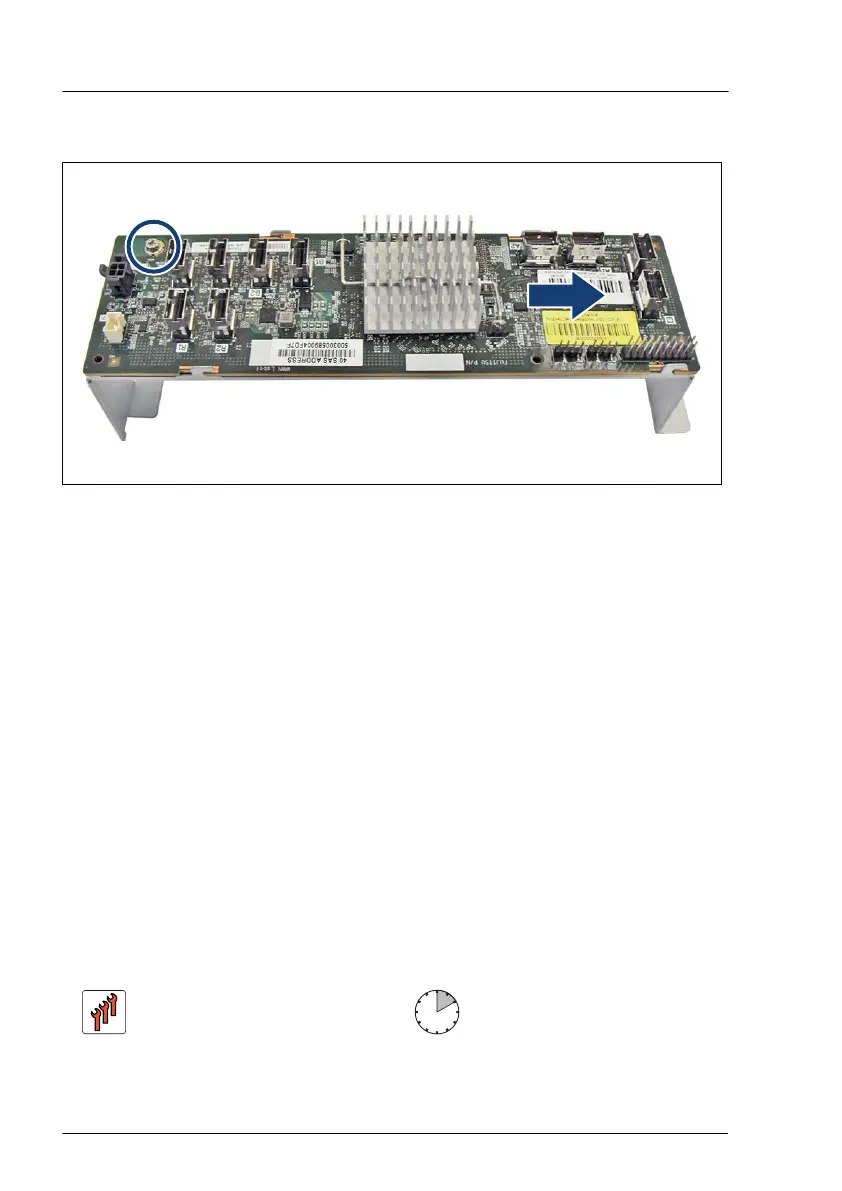

Figure 111: Removing the SAS expander board
▶
Loosen the screw (see circle).
▶
Push the SAS expander board in the direction of the arrow
.
▶
Remove the SAS expander board from the SAS expander board holder.
Concluding steps
▶
"Installing the fan cage" on page
76.
▶
"Reassembling" on page 60.
▶
"Connecting the power cord" on page 65.
▶
"Switching on the server" on page 69.
▶
If applicable,"Installing the front cover with lock" on page 69.
7.6.3 Replacing the SAS expander board
Field Replaceable Unit
(FRU)
Hardware: 10 minutes
Hard disk drive (HDD) / solid state disk (SSD)
210 Upgrade and Maintenance Manual RX2540 M6
