Removing the SAS expander board holder
▶
Disconnect all cables from the SAS expander board.

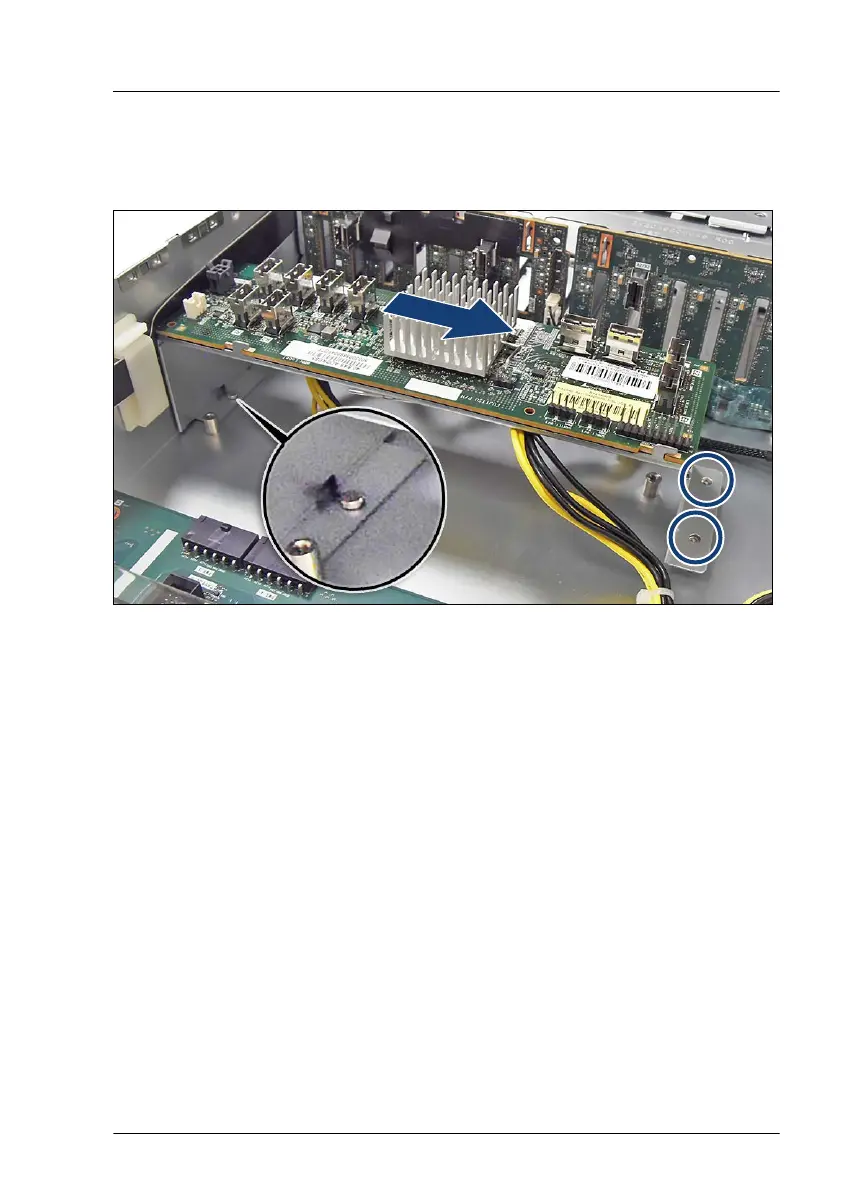

Figure 110: Removing the SAS expander board holder
▶
Remove the two screws (see circles).
▶
Push the SAS expander board holder in direction of the arrow until the guide
pin disengages (see close-up).
▶
Remove the SAS expander board holder
.
Hard disk drive (HDD) / solid state disk (SSD)
RX2540 M6 Upgrade and Maintenance Manual 209
