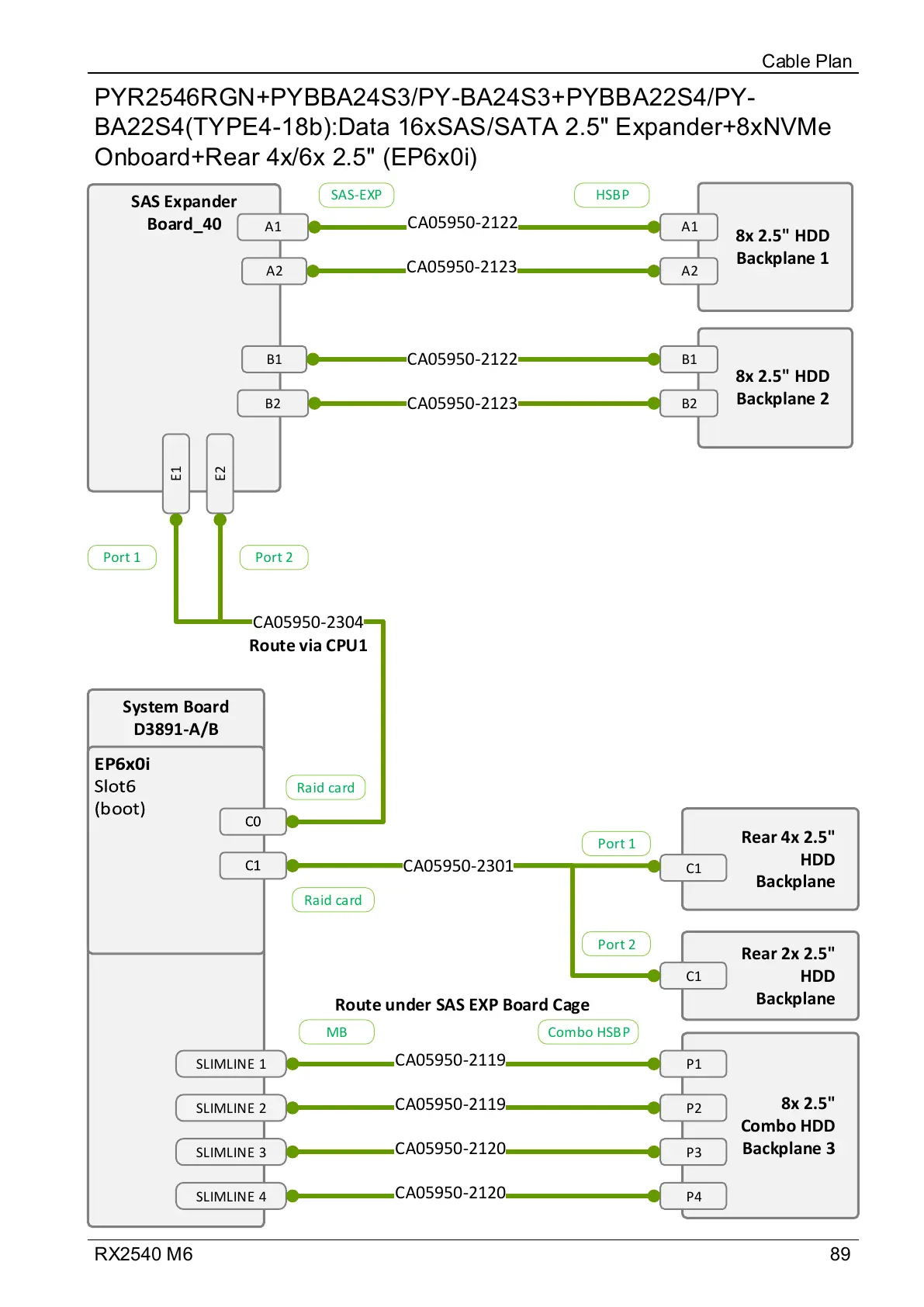

Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

89RX2540 M6
PYR2546RGN+PYBBA24S3/PY-BA24S3+PYBBA22S4/PY-
BA22S4(TYPE4-18b):Data 16xSAS/SATA 2.5" Expander+8xNVMe
Onboard+Rear 4x/6x 2.5" (EP6x0i)
Cable Plan
Rear 4x 2.5"
HDD
Backplane
Rear 2x 2.5"
HDD
Backplane
C1
C1
CA05950-2301
System Board
D3891-A/B
SAS Expander
Board_40
A1
8x 2.5" HDD
Backplane 1
A1
CA05950-2123
CA05950-2122
8x 2.5" HDD
Backplane 2
E1 E2
CA05950-2304
A2
B1
B2
A2
B1
B2
CA05950-2122
CA05950-2123
8x 2.5"
Combo HDD
Backplane 3
P1
P2
CA05950-2119
CA05950-2119
SLIMLINE 1
SLIMLINE 2
SLIMLINE 3
SLIMLINE 4
P3
P4
CA05950-2120
CA05950-2120
Port 2Port 1
Port 1
Port 2
Raid card
Raid card
SAS-EXP HSBP
MB Combo HSBP
Route via CPU1
Route under SAS EXP Board Cage
