Fujitsu PRIMERGY RX2540 M6

68RX2540 M6
PYR2546RFN+PYBBA24PF/PY-BA24PF+PYBBA22P2/PY-
BA22P2(TYPE4-4a):Data 24xSAS/SATA 2.5" (EP5x0i)x2+Rear 4x/
6x NVMe (Retimer)

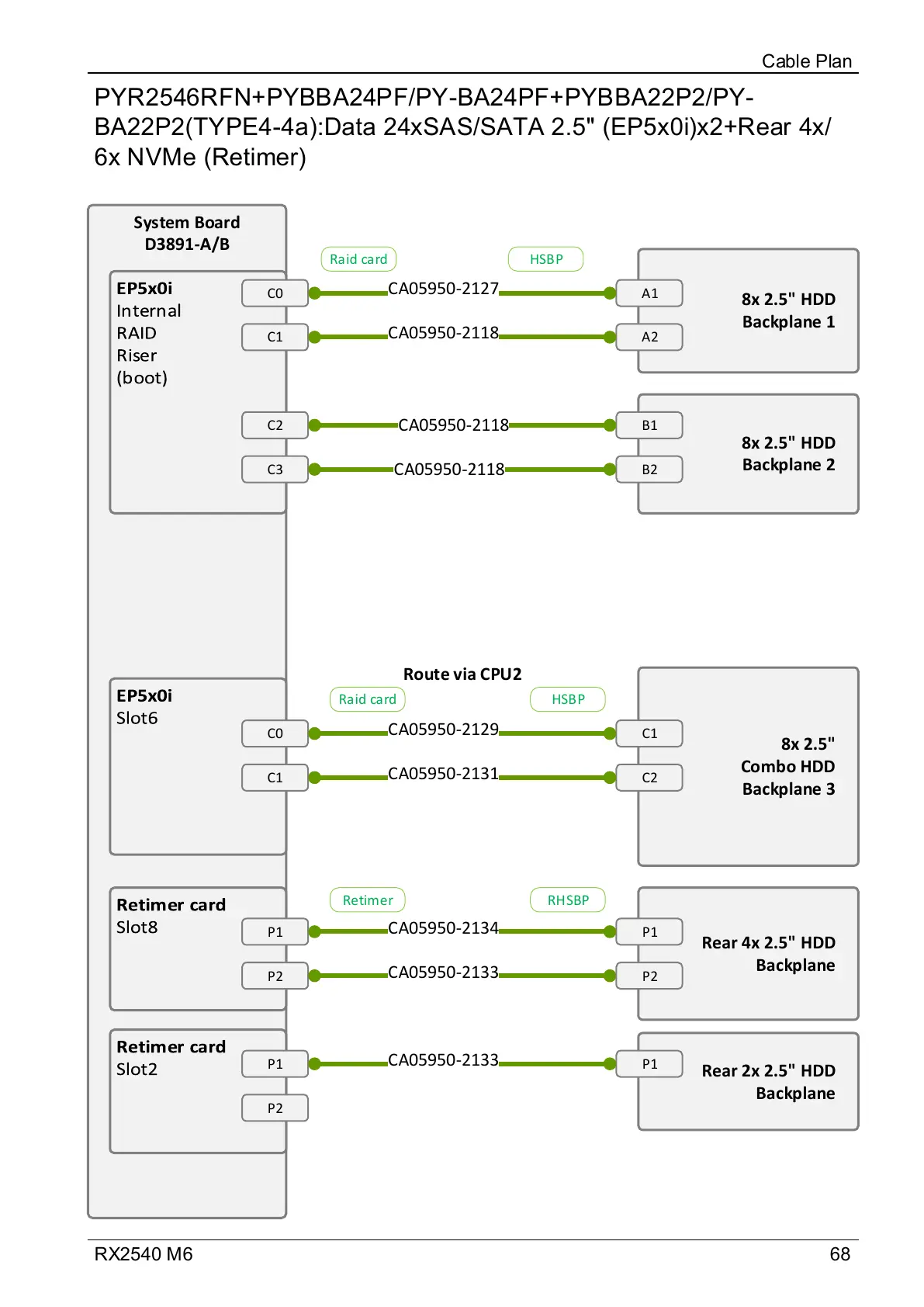

Cable Plan
System Board
D3891-A/B
C0
C1
8x 2.5" HDD
Backplane 1
A1
A2
CA05950-2118
CA05950-2127
8x 2.5" HDD
Backplane 2
B1
B2
C2
C3
CA05950-2118
CA05950-2118
8x 2.5"
Combo HDD
Backplane 3
C1
C2
C0
C1
CA05950-2129
CA05950-2131
P1
P2
Rear 4x 2.5" HDD
Backplane
P1
CA05950-2134
Rear 2x 2.5" HDD
Backplane
P1
CA05950-2133
P2
P1
P2
CA05950-2133
Raid card HSBP
Raid card HSBP
Retimer RHSBP
Route via CPU2
