Installing the cross bar
A
A

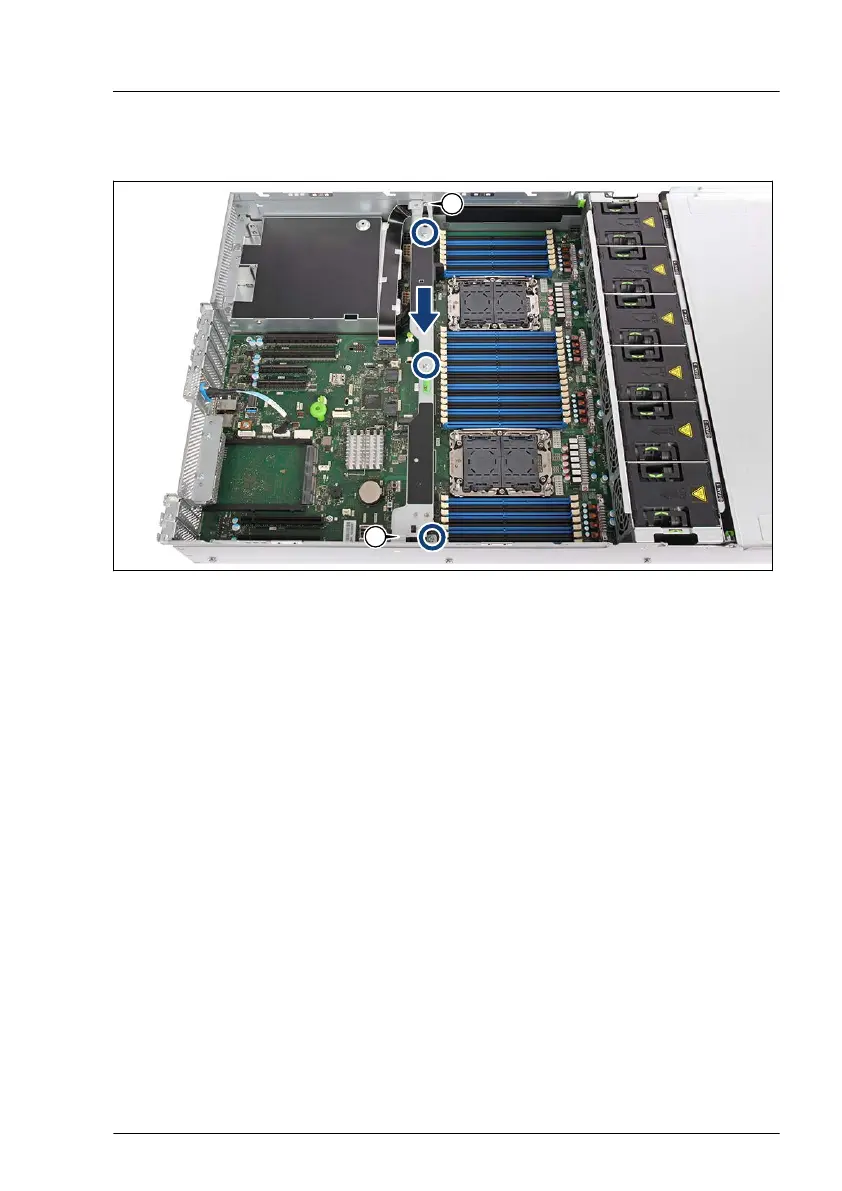

Figure 34: Installing the cross bar
▶
Install the cross bar
. Notice the two align pins (A).
▶
Fasten the three screws (see circles).
