17.1.3 Server interior
17.1.3.1 Servers with air cooling

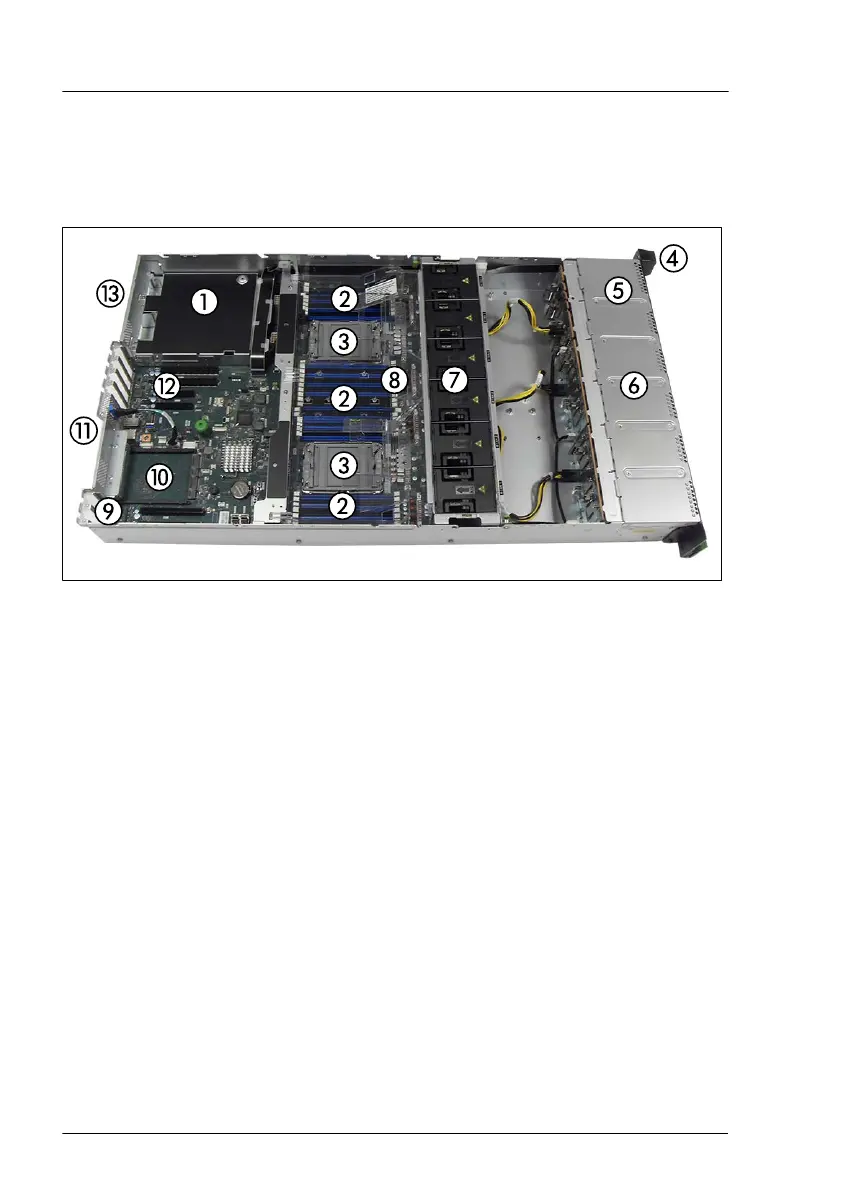

Figure 376: PRIMERGY RX2540 M6 interior (example: 2.5-inch HDD model)
1 Up to 2 PSUs / dummy cover
2
Main memory
3
CPUs
4 Front panel module / front VGA
(option) / dummy cover
5 ODD (option) / dummy cover
6 Up to 12x 3.5-inch HDDs / 24x 2.5-inch
HDDs / 64 EDSFF SSDs
7 Fan modules
8 Air duct
9 PCIe slot 1-2
10
OCP module
1
11 PCIe slots 3 or 3/4 / Riser module 1
12 PCI slots 5-8
13 PCIe slots 9 or 9/10 / Riser module 2
1
)
The OCP module is an option.
Appendix A
540 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
