Fujitsu PRIMERGY RX2540 M6

62RX2540 M6
PYR2546RDN/PYR2546REN+PYBBA24PF/PY-
BA24PF+PYBBA22P2/PY-BA22P2(TYPE3-13):Data 16xSAS/SATA
2.5" Expander(CP/EP5xxi)+Rear 4x/6x NVMe (Retimer)

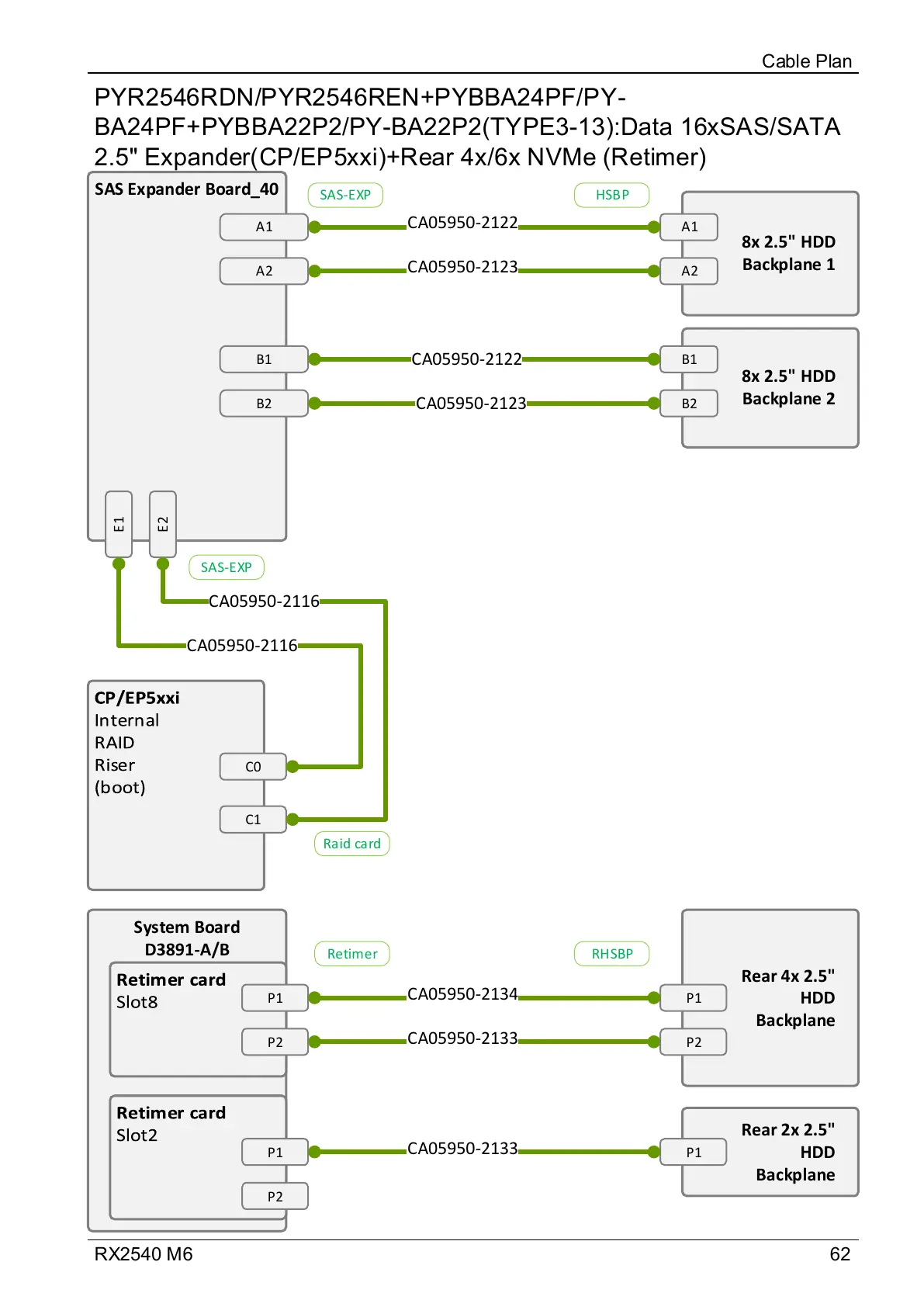

Cable Plan
SAS Expander Board_40
A1
8x 2.5" HDD
Backplane 1
A1
CA05950-2123
CA05950-2122
8x 2.5" HDD
Backplane 2
C0
E1 E2
C1
CA05950-2116
CA05950-2116
A2
B1
B2
A2
B1
B2
CA05950-2122
CA05950-2123
System Board
D3891-A/B
P1
P2
Rear 4x 2.5"
HDD
Backplane
P1
CA05950-2134
Rear 2x 2.5"
HDD
Backplane
P1
CA05950-2133
P2
P1
P2
CA05950-2133
Raid card
SAS-EXP
SAS-EXP HSBP
Retimer RHSBP
