Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

52RX2540 M6

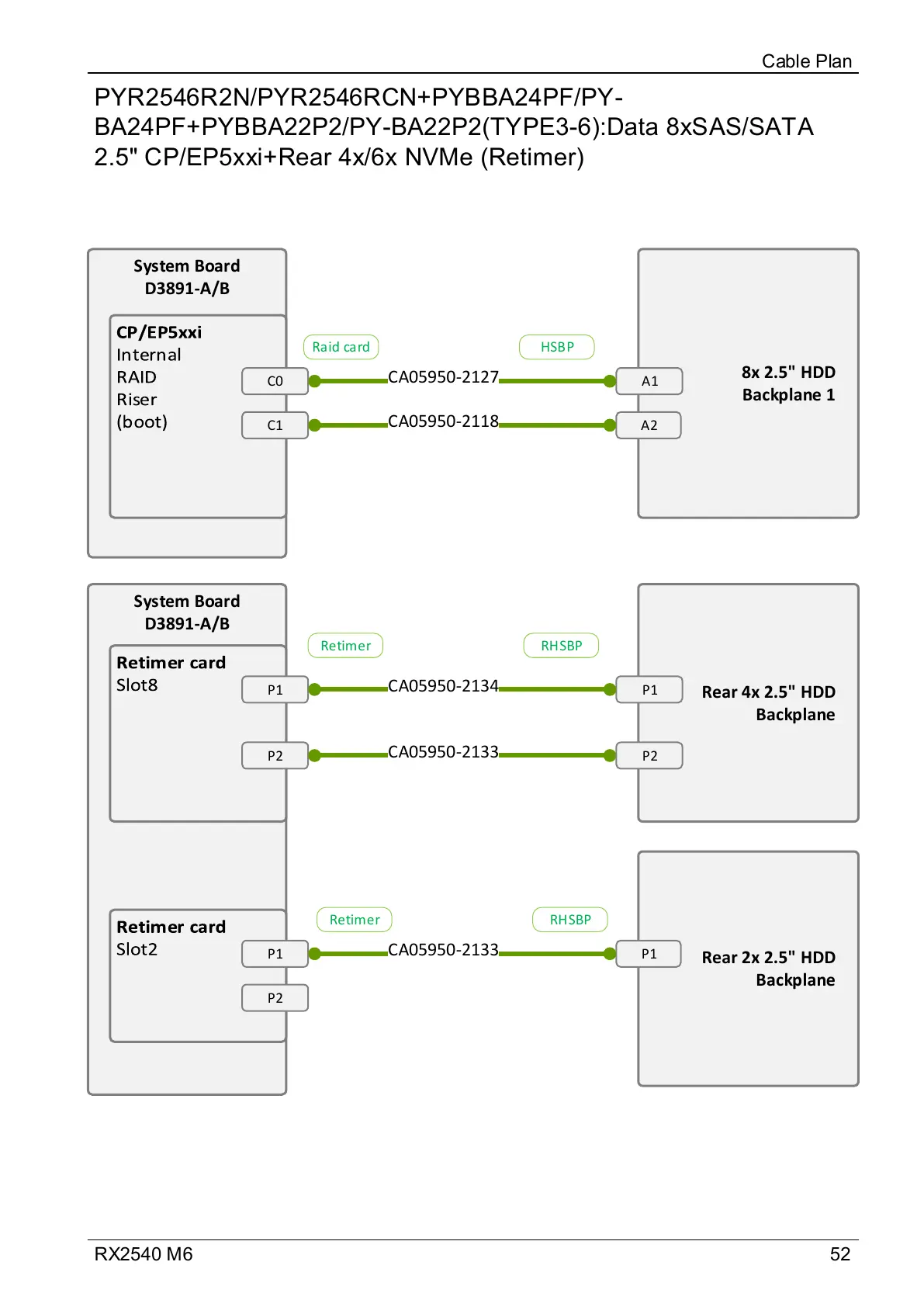

PYR2546R2N/PYR2546RCN+PYBBA24PF/PY-
BA24PF+PYBBA22P2/PY-BA22P2(TYPE3-6):Data 8xSAS/SATA
2.5" CP/EP5xxi+Rear 4x/6x NVMe (Retimer)
Cable Plan
System Board
D3891-A/B
C0
C1
8x 2.5" HDD
Backplane 1
A1
A2
CA05950-2118
CA05950-2127
System Board
D3891-A/B
P1
P2
Rear 4x 2.5" HDD
Backplane
P1
CA05950-2134
Rear 2x 2.5" HDD
Backplane
P1
CA05950-2133
P2
P1
P2
CA05950-2133
Raid card HSBP
Retimer RHSBP
Retimer RHSBP

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
