Fujitsu PRIMERGY RX2540 M6

76RX2540 M6
PYR2546RFN+PYBBA24PF/PY-BA24PF+PYBBA22P2/PY-
BA22P2(TYPE4-10a):Data 16xSAS/SATA 2.5" +8x2.5" NVMe
Onboard+Rear 4xNVMe (EP5x0i)x2

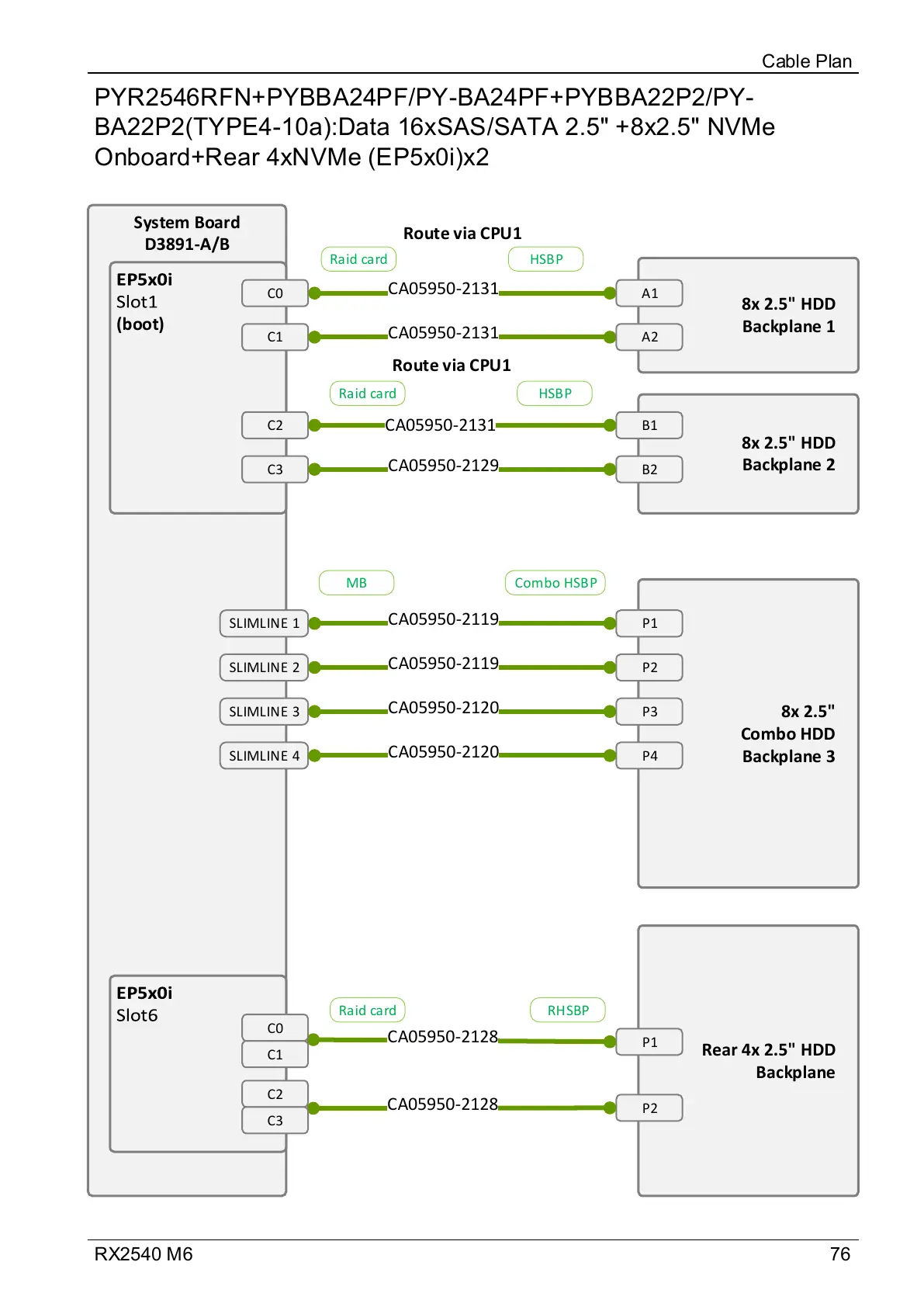

Cable Plan
Rear 4x 2.5" HDD
Backplane
P1
CA05950-2128
P2
CA05950-2128
System Board
D3891-A/B
(boot)
C0
C1
8x 2.5" HDD
Backplane 2
CA05950-2131
CA05950-2131
8x 2.5"
Combo HDD
Backplane 3
P1
P2
CA05950-2119
CA05950-2119
SLIMLINE 1
SLIMLINE 2
SLIMLINE 3
SLIMLINE 4
P3
P4
CA05950-2120
CA05950-2120
8x 2.5" HDD
Backplane 1
B1
B2
A1
A2
C2
C3
CA05950-2129
CA05950-2131
C1
C0
C2
C3
Raid card HSBP
MB Combo HSBP
Raid card RHSBP
Raid card HSBP
Route via CPU1
Route via CPU1
