Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

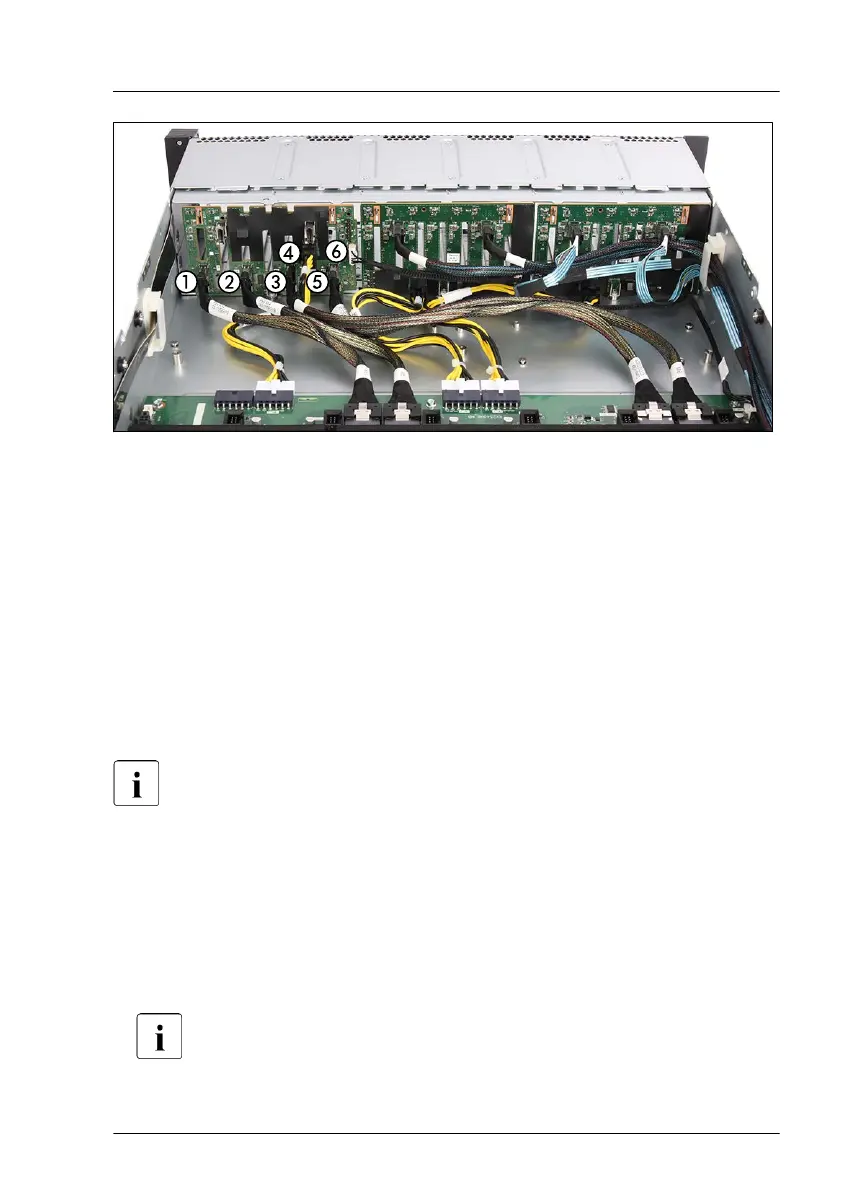

Figure 88: Connecting cables to the 8x 2.5-inch combo HDD backplane (example onboard
PCIe)
▶
Connect the following cables to the combo HDD backplane:
1 Slimline cable
2 Slimline cable
3 Slimline cable
4 Power cable
5 Slimline cable
6 OOB cable
For the cable plan, see "Appendix B" on page 571
.
Concluding steps
▶
"Installing the fan cage" on page 76
.
▶
"Reassembling" on page 60.
▶
Insert all HDD/SSD modules, see "Installing a 2.5-inch HDD/SSD module"
on page 167.
Ensure that you install the HDD/SSD module in the bay it was located
before the HDD backplane replacement.
Hard disk drive (HDD) / solid state disk (SSD)
RX2540 M6 Upgrade and Maintenance Manual 183

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
