Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

▶
"Reassembling" on page 60.
▶
"Connecting the power cord" on page
65.
▶
"Switching on the server" on page 69.
▶
If applicable, "Installing the front cover with lock" on page 69.
7.5 2.5-inch HDD/SSD configurations
7.5.1 Overview of configurations
7.5.1.1 Configuration with up to 16 HDD/SSD modules

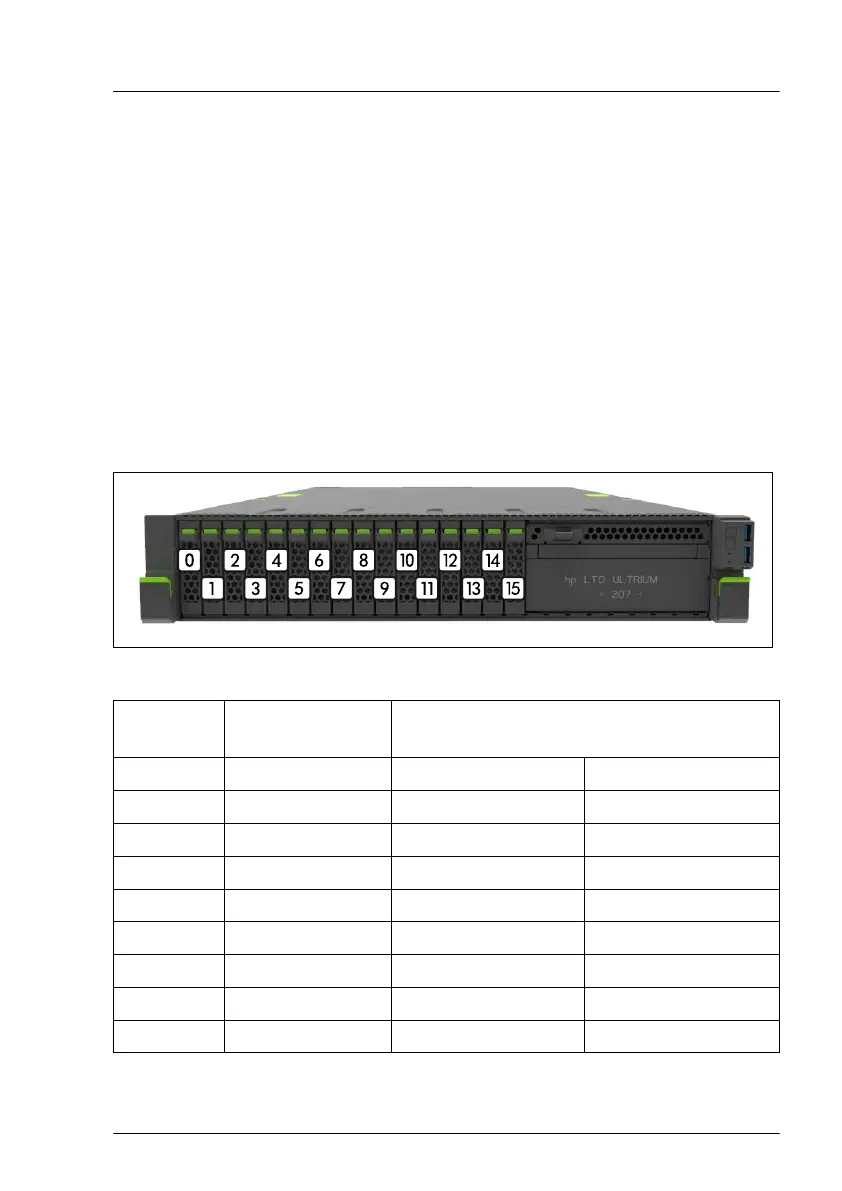

Figure 69: Configuration with up to 16 2.5-inch HDDs/SSDs
Position Logical drive
number
ServerView RAID Manager display name
one SAS controller two SAS controllers
[0] 0 Vendor Product (0) Vendor Product (0:0)
[1] 1 Vendor Product (1) Vendor Product (0:1)
[2] 2 Vendor Product (2) Vendor Product (0:2)
[3] 3 Vendor Product (3) Vendor Product (0:3)
[4] 4 Vendor Product (4) Vendor Product (0:4)
[5] 5 Vendor Product (5) Vendor Product (0:5)
[6] 6 Vendor Product (6) Vendor Product (0:6)
[7] 7 Vendor Product (7) Vendor Product (0:7)
Hard disk drive (HDD) / solid state disk (SSD)
RX2540 M6 Upgrade and Maintenance Manual 159

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
