Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

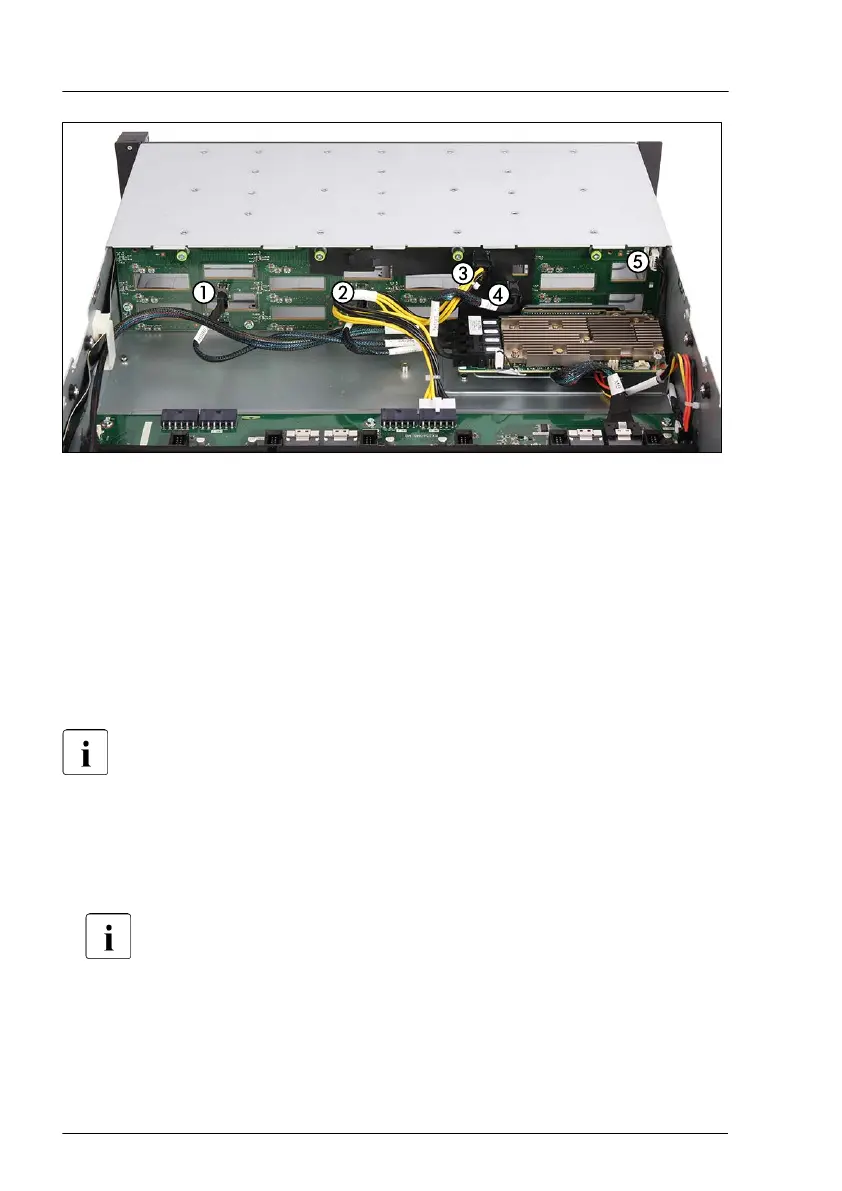

Figure 68: Connecting cables to the 12x 3.5-inch HDD backplane
▶
Connect the following cables to the HDD backplane:
1 SAS/SATA cable
2 SAS/SATA cable
3 Power cable
4 SAS/SATA cable
5 OOB cable
For the cable plan, see "Appendix B" on page 571
.
Concluding steps
▶
Insert all HDD/SSD modules, see "Installing a 3.5-inch HDD module" on
page 147
.
Ensure that you install the HDD module in the bay it was located
before the HDD backplane replacement.
▶
Insert all dummy modules, see "Installing a 3.5-inch HDD dummy module"
on page 150.
▶
"Installing the fan cage" on page 76
.
Hard disk drive (HDD) / solid state disk (SSD)
158 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
