Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

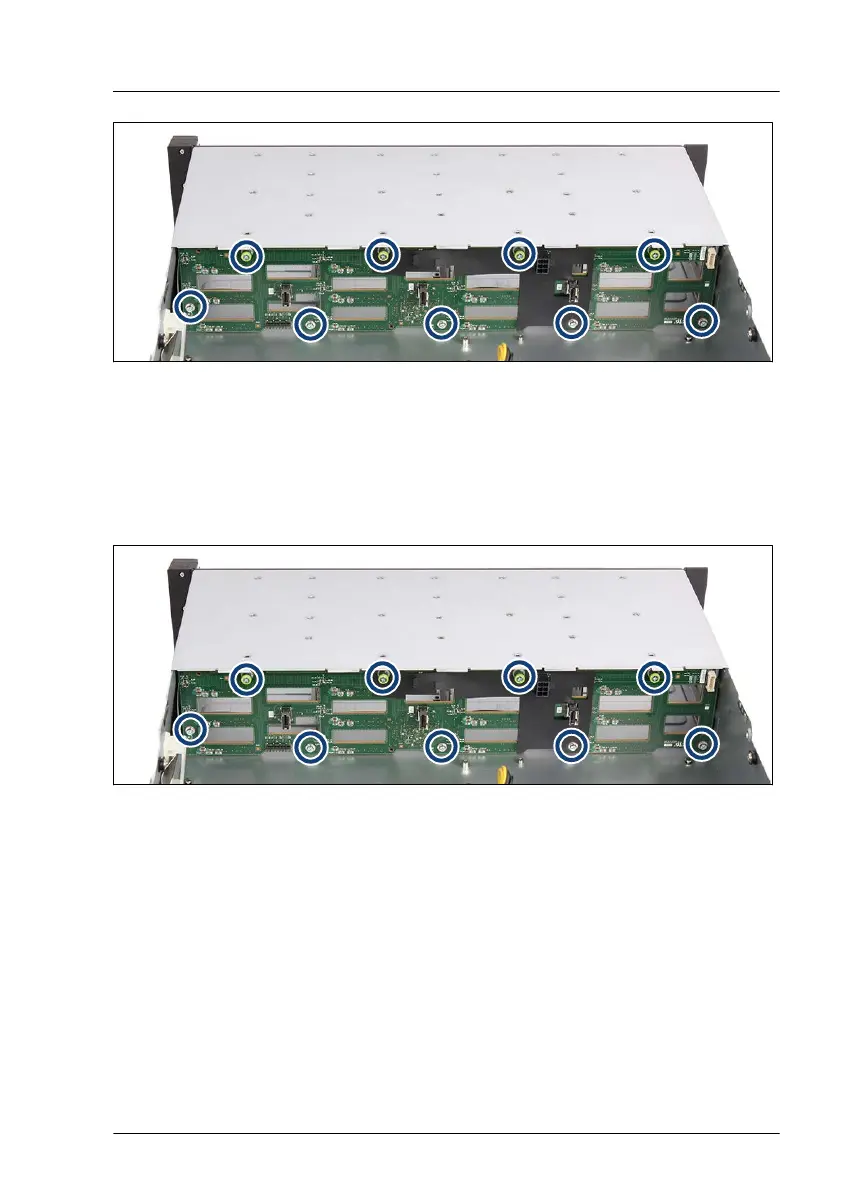

Figure 66: Removing the 12x 3.5-inch HDD backplane
▶
Release the nine screws (see circles).
▶
T
ake out the HDD backplane at a slight angle.
Installing the new 12x 3.5-inch HDD backplane
Figure 67: Installing the 12x 3.5-inch HDD backplane (A)
▶
Insert the HDD backplane into the chassis.
▶
Fasten the nine screws (see circles).
▶
Install the internal RAID riser module, see "Installing the internal RAID riser
module" on page
271
.
▶
If applicable, install the SAS expander board holder, see "Installing the SAS
expander board holder" on page 206.
Hard disk drive (HDD) / solid state disk (SSD)
RX2540 M6 Upgrade and Maintenance Manual 157

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
