Installing the internal RAID riser module

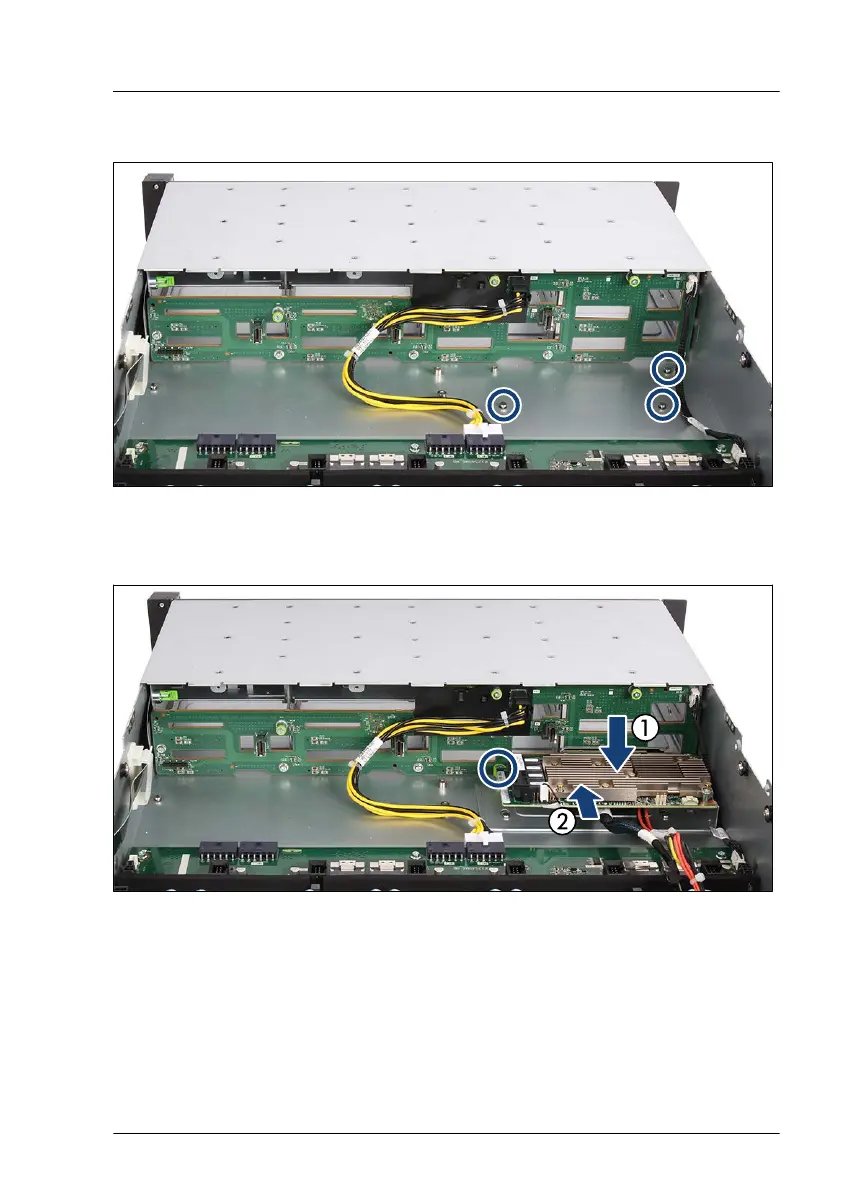

Figure 163: Bolts for the internal RAID riser module
▶
Notice the three bolts (see circles).
Figure 164: Installing the internal RAID riser module
▶
Place the internal RAID riser module on the three bolts (1).
▶
Push the internal RAID riser module to the front to engage the holes and the
bolts (2).
▶
Fasten the Internal RAID riser module with the knurled screw (see circle).
