Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

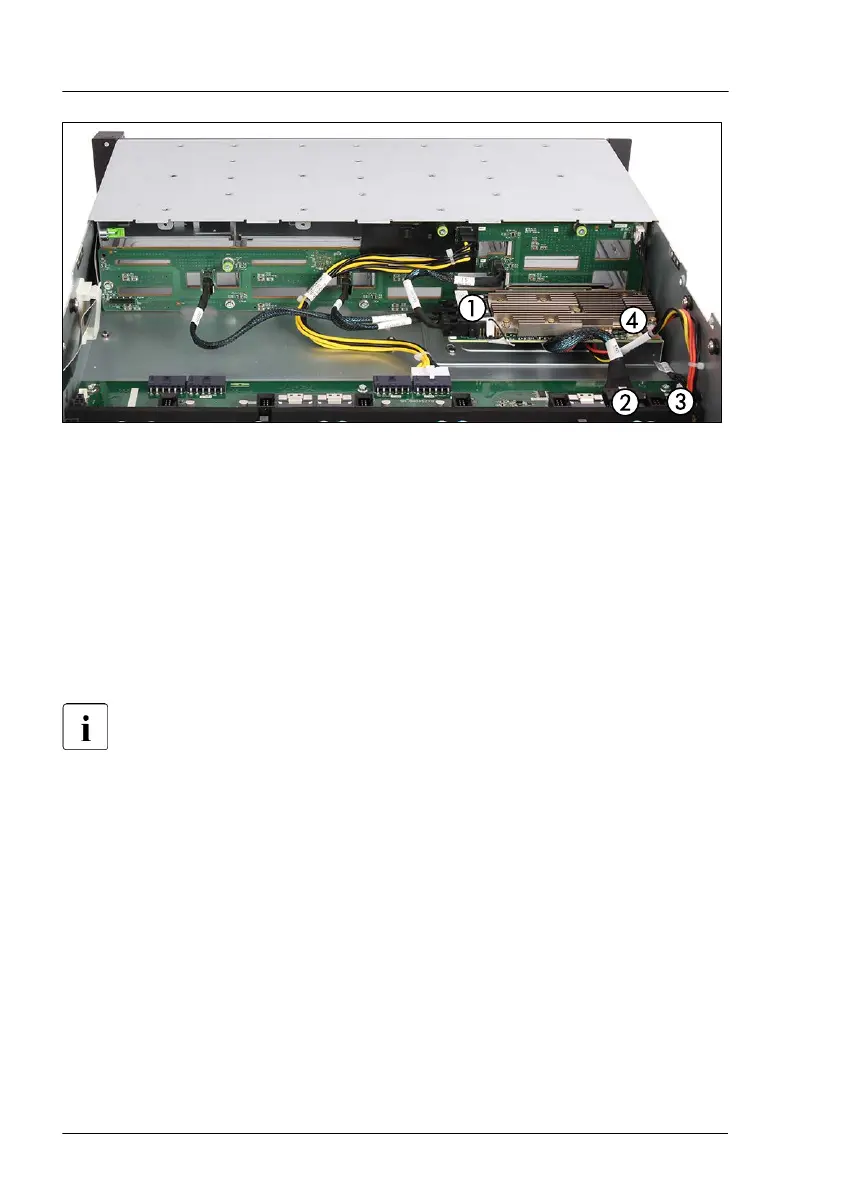

Figure 165: Connecting cables
▶
Connect the following cables:
1 SAS cables (depending on configuration)
2 NVMe cable to connector "SLIMELINE 1" on the system board
3 Power cable to connector "PWR 1" on the system board
4 If applicable, FBU cable
▶
Connect the SAS cables to the corresponding HDD backplane.
For the cable plan, see "Appendix B" on page
571
.
Concluding steps
▶
"Installing the fan cage" on page 76
.
▶
"Reassembling" on page 60.
▶
"Connecting the power cord" on page 65.
▶
"Switching on the server" on page 69.
▶
If applicable, "Installing the front cover with lock" on page 69.
▶
If applicable, update the system information of your server using the Chassis
ID Prom Tool, see "Using the Chassis ID Prom Tool" on page 110.
▶
"Updating expansion card firmware" on page 95.
Expansion cards and backup units
272 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
