Disconnect the power cord from the PSU and remove it from the cable
clamp.
4.4.2 Disconnecting the power cord (DC PSU)
Example DC PSU -48 V

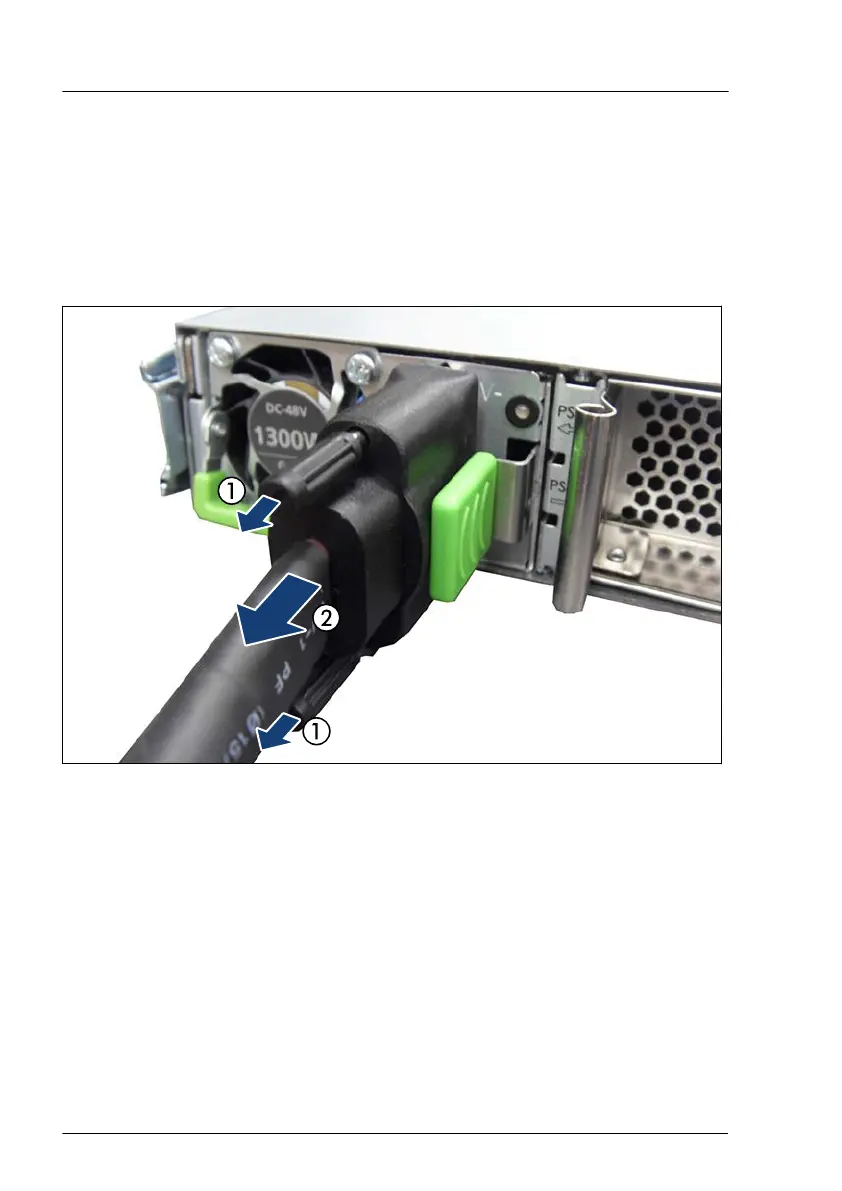

Figure 5: Disconnecting the server from the dc voltage - example DC PSU -48 V
▶
Loosen the two studs (1).
▶
Disconnect the power cord from the PSU (2).
Basic hardware procedures
54 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
