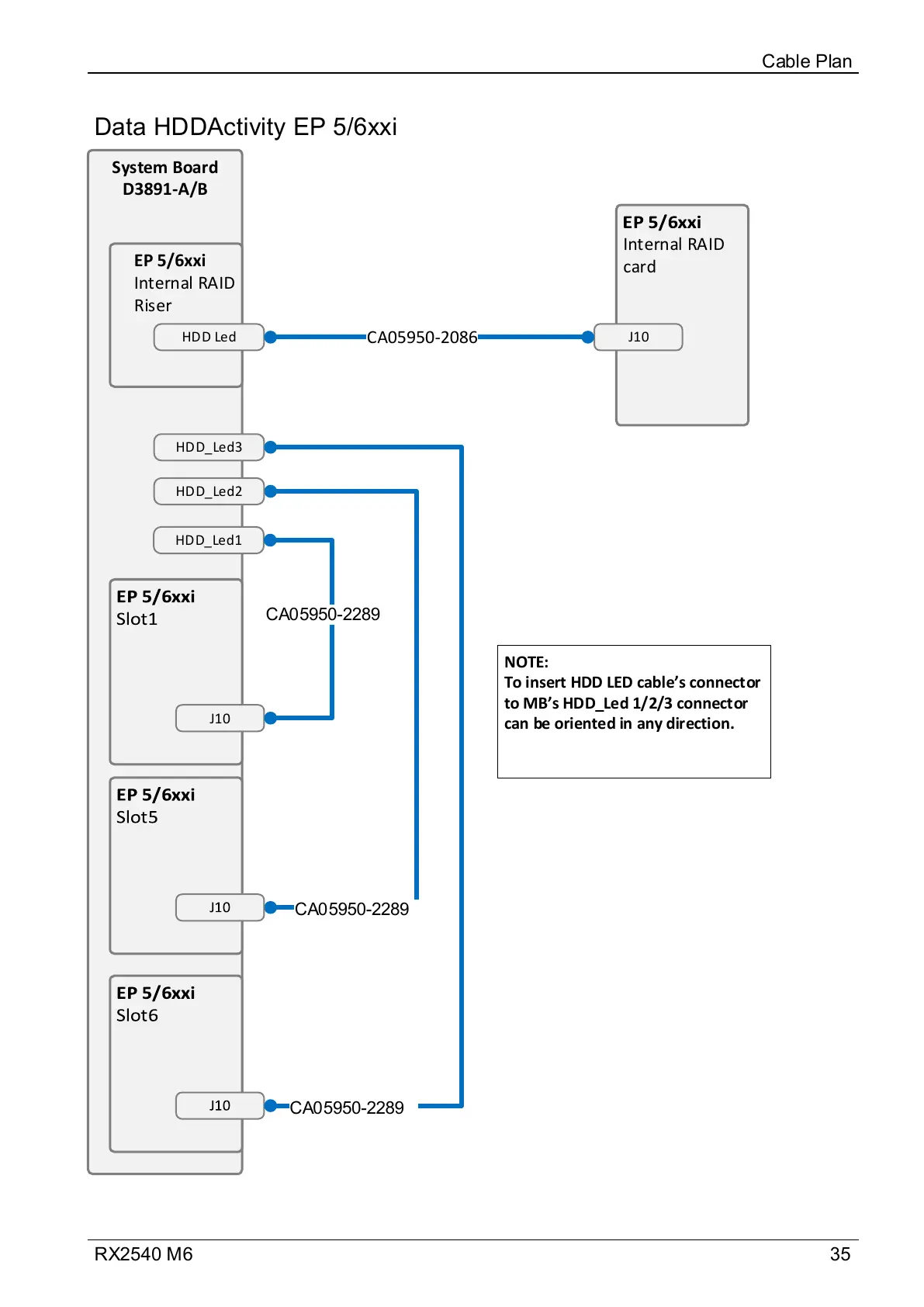

35RX2540 M6
Data HDDActivity EP 5/6xxi
Cable Plan
System Board
D3891-A/B
CA05950-2289
J10
HDD_Led1
CA05950-2289
HDD_Led2
HDD_Led3
CA05950-2289
EP 5/6xxi
Internal RAID
Riser
Internal RAID
card
J10HDD Led
CA05950-2086
NOTE:
To insert HDD LED cable’s connector
to MB’s HDD_Led 1/2/3 connector
can be oriented in any direction.
