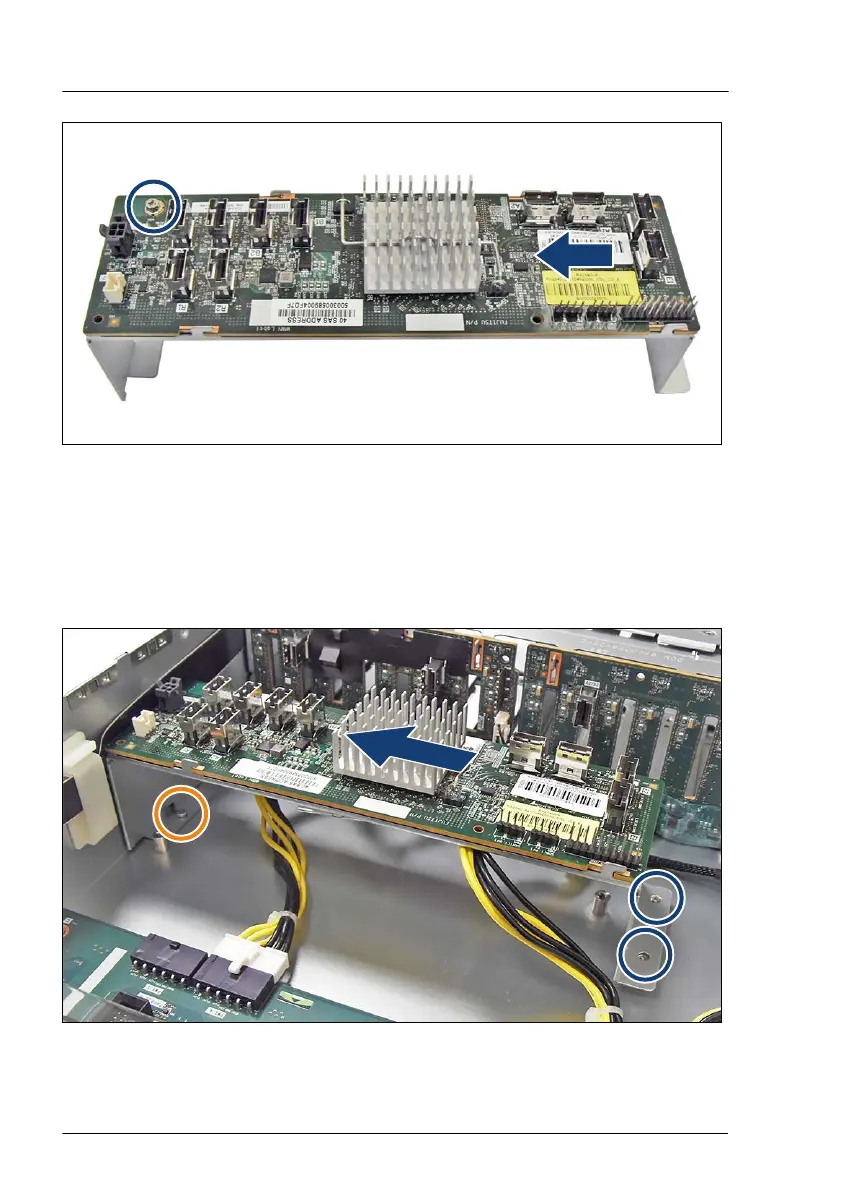

Figure 107: Installing the SAS expander board
▶
Push the SAS expander board in the direction of the arrow.
▶
Fasten the SAS expander board with the screw (see circle).
Installing the SAS expander board holder
Figure 108: Installing the SAS expander board holder
Hard disk drive (HDD) / solid state disk (SSD)
