Field Replaceable Unit
(FRU)
Hardware: 10 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
Preliminary steps
▶
"Locating the defective server" on page 49.
▶
If applicable, "Removing the front cover with lock" on page 52.
▶
"Shutting down the server" on page 52.
▶
"Disconnecting the power cord" on page 53.
▶
"Getting access to the component" on page 56.
▶
"Removing the fan cage" on page 74.
Installing the SAS expander board

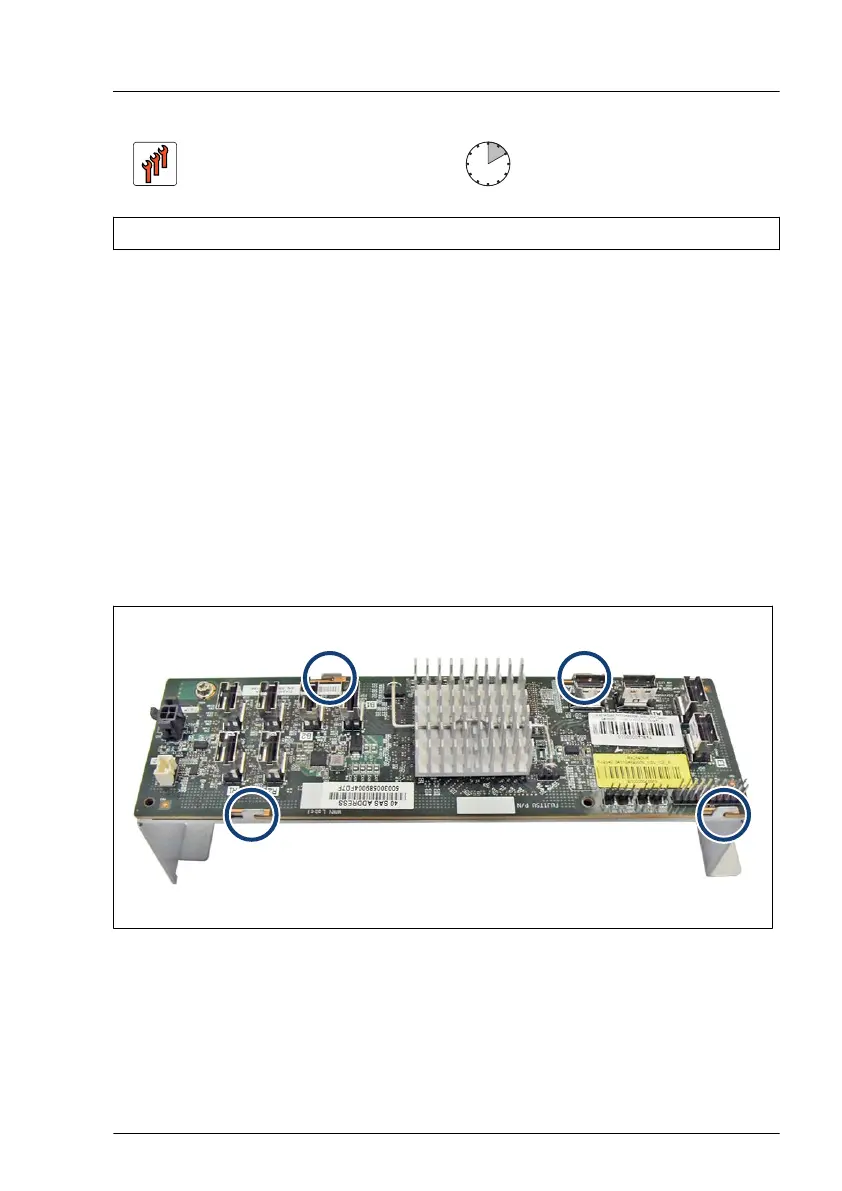

Figure 106: Positioning the SAS expander board
▶
Position the SAS expander board to the four hooks of the SAS expander
board holder (see circles).
Hard disk drive (HDD) / solid state disk (SSD)
RX2540 M6 Upgrade and Maintenance Manual 205
