Fan type (FJ P/N: CA05950-2152) is a dual rotor fan. In the system
information (Chassis ID EPROM) the term "Dual Fan" is used in system
names.
CAUTION
Depending on the configuration, different fan types are necessary!
▶
Please check, if you ordered the correct fans.
Numbering of the fan modules

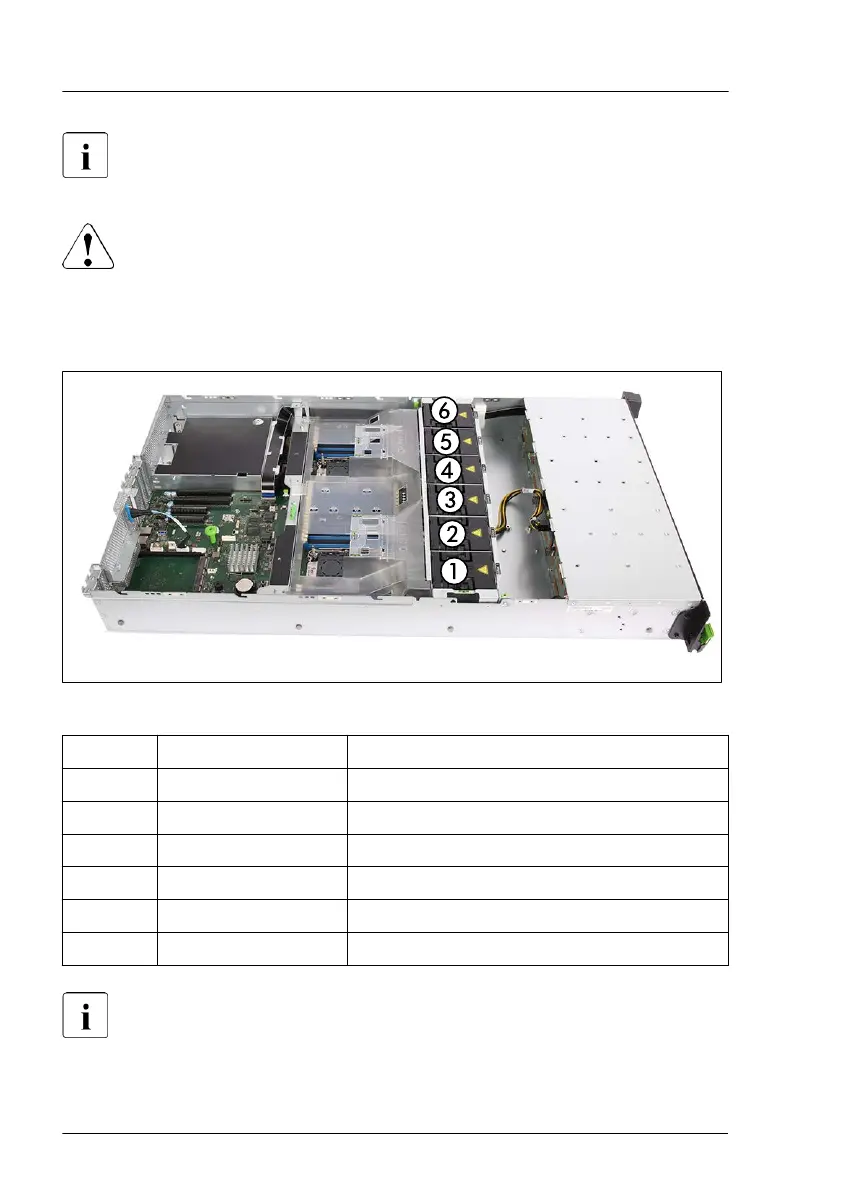

Figure 125: Numbering of the fan modules
Pos. CPU Dual rotor fans
1 CPU 1 fan 1 (A/B)
2 CPU 1 fan 2 (A/B)
3 CPU 1 fan 3 (A/B)
4 CPU 2 fan 4 (A/B)
5 CPU 2 fan 5 (A/B)
6 CPU 2 fan 6 (A/B)
In case of 1 CPU configuration with dual rotor fans, the bays 4, 5, and 6
are occupied with fan cage foams.
Fans
228 Upgrade and Maintenance Manual RX2540 M6
