Close the green locks (see circles).

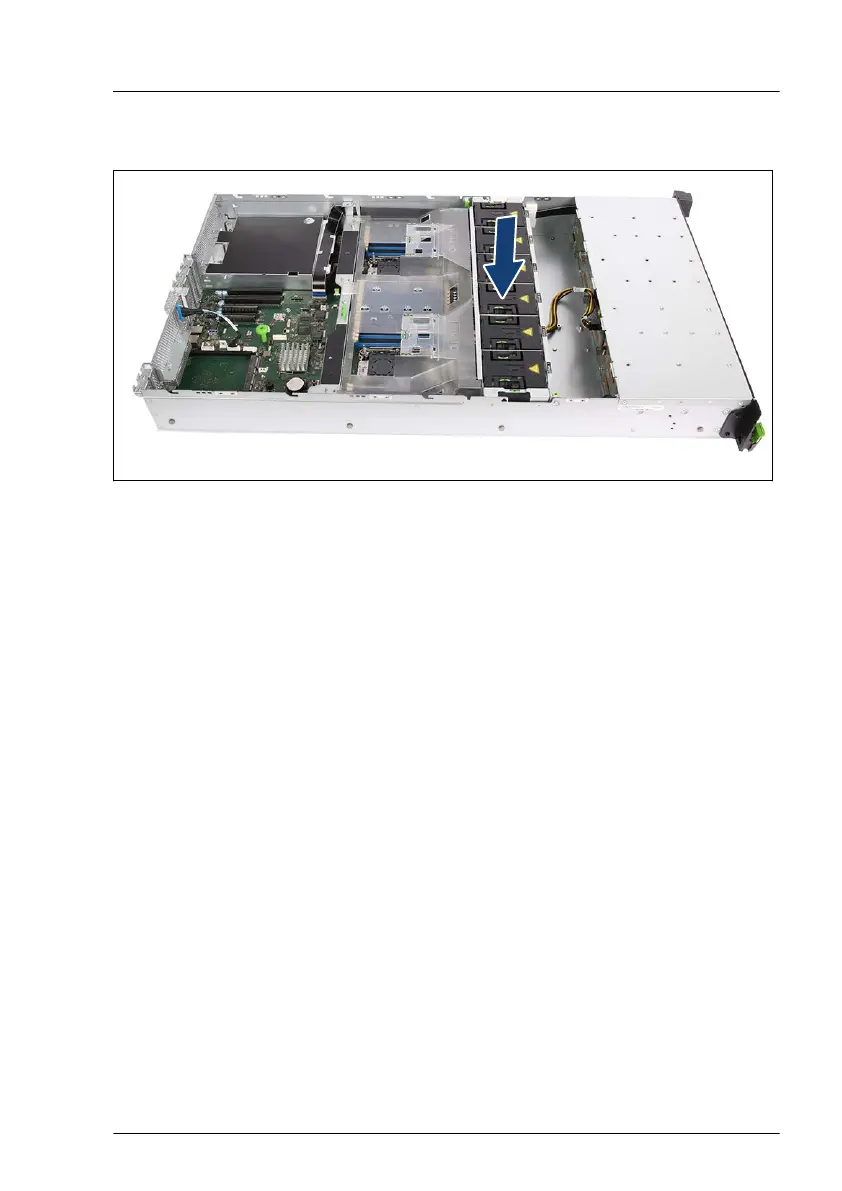

Figure 29: Installing the fan module
▶
Insert each fan module in the fan cage.
▶
Press down the fan module until it locks.
Basic hardware procedures
RX2540 M6
Upgrade and Maintenance Manual
77
