Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

Note for removing a hot-plug PSU from a redundant configuration
If a hot-plug PSU should be removed from a redundant configuration, while the
system is in operation, proceed the following:
▶
Disconnect the power cord from the dedicated PSU, see "Disconnecting the
power cord" on page 53.
A CSS error is detected and the message "redundancy lost" is displayed
using the iRMC S5 web interface. Y
our configuration is now non-redundant.
The CSS error is only an information. After removing the PSU out of its bay,
the CSS error will be cleared automatically.
Note for servers using CMA (Cable Management Arm)
Regarding of removing PSUs, additional tasks are needed, due to an
interference between CMA and the PSUs.

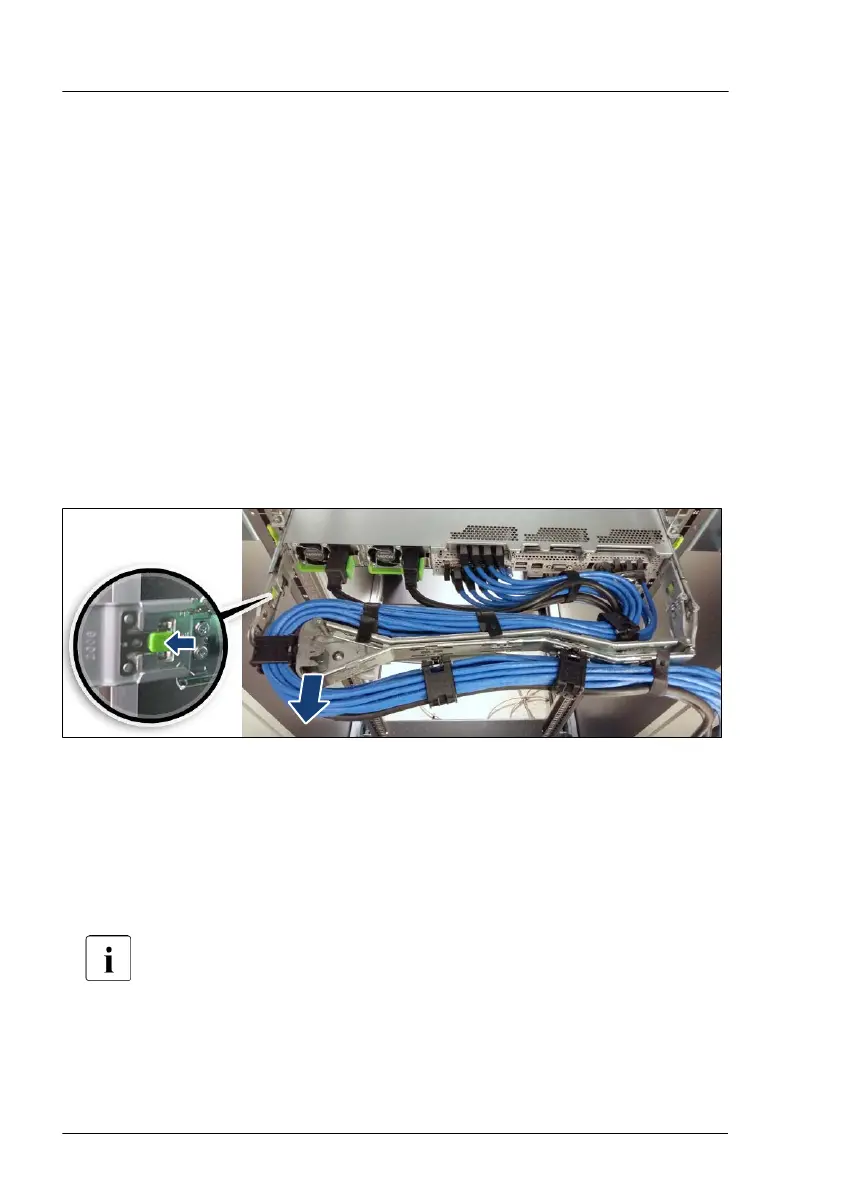

Figure 45: Unlocking the CMA
▶
Push the lock spring inward to unlock the CMA bracket.
▶
Remove the CMA.
▶
Hold the CMA including cables in the one hand.
▶
Remove the PSU and install the dummy cover carefully
.
Note for PSU 1:
Remove the PSU 1 carefully while lifting PSU 1 and bringing PSU 1
to the right, in order to avoid interference.
▶
Mount the complete assembly (CMA bracket and the CMA) again into the
rail.
Power supply unit (PSU)
128 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
