Preliminary steps
No steps needed.
Installing an EDSFF SSD in an EDSFF installation frame
A

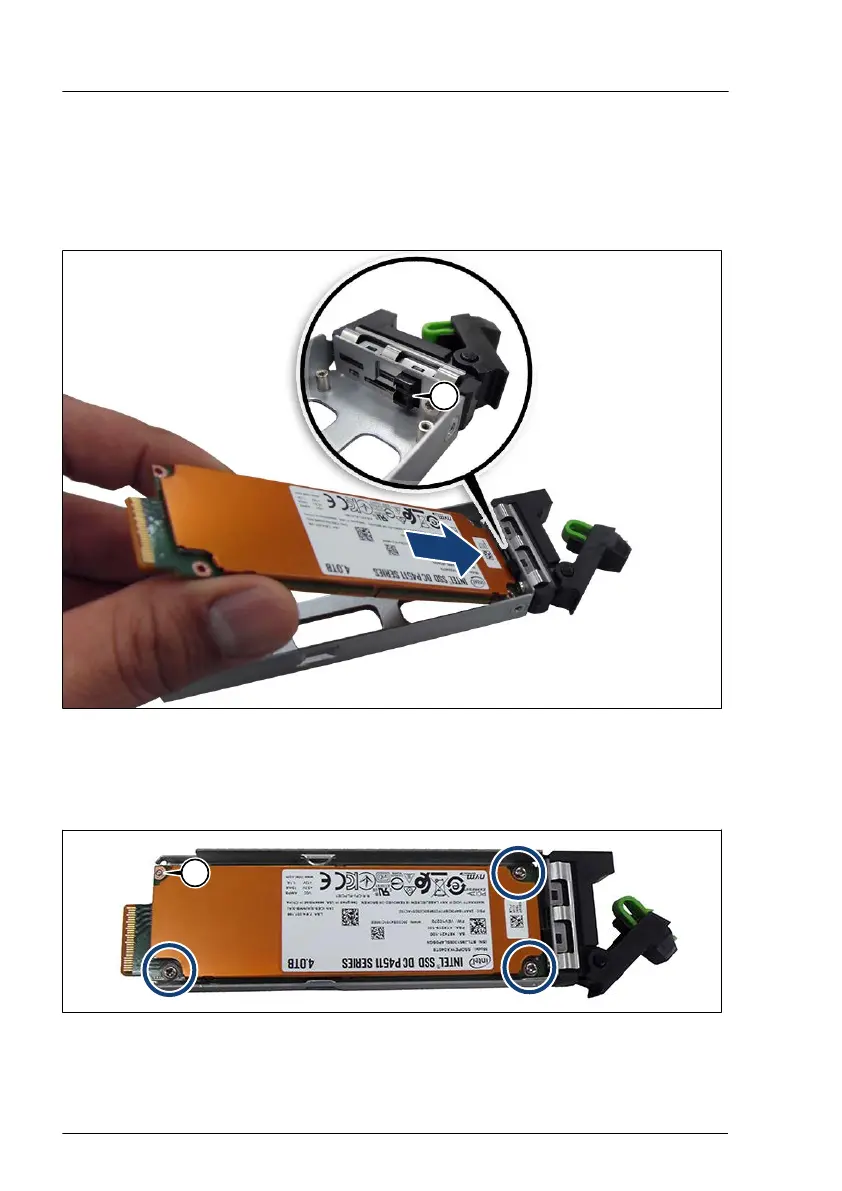

Figure 54: Installing the EDSFF SSD in the EDSFF installation frame (A)
▶
Insert the EDSFF SSD into the EDSFF installation frame at a slight angle.
Notice the guide rail (A).
A
Figure 55: Installing the EDSFF SSD in the EDSFF installation frame (B)
Hard disk drive (HDD) / solid state disk (SSD)
