Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

Example PDUAL CP100 (2x M.2 SSDs SATA RAID PCIe card)

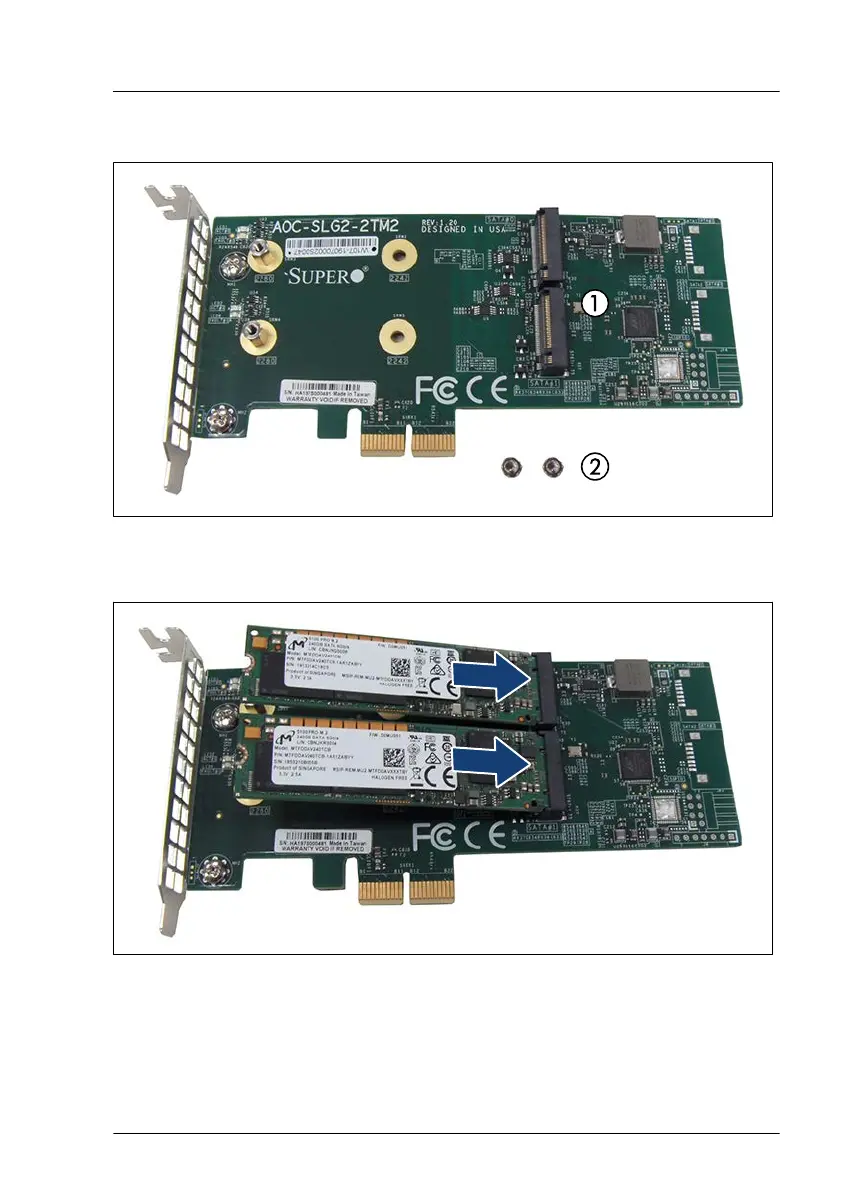

Figure 155: PDUAL CP100
1 PDUAL CP100 2 Screws
Figure 156: Installing M.2 SSDs (A)
▶
Insert the two M.2 SDDs in a slight angle.
Expansion cards and backup units
RX2540 M6 Upgrade and Maintenance Manual 261

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
