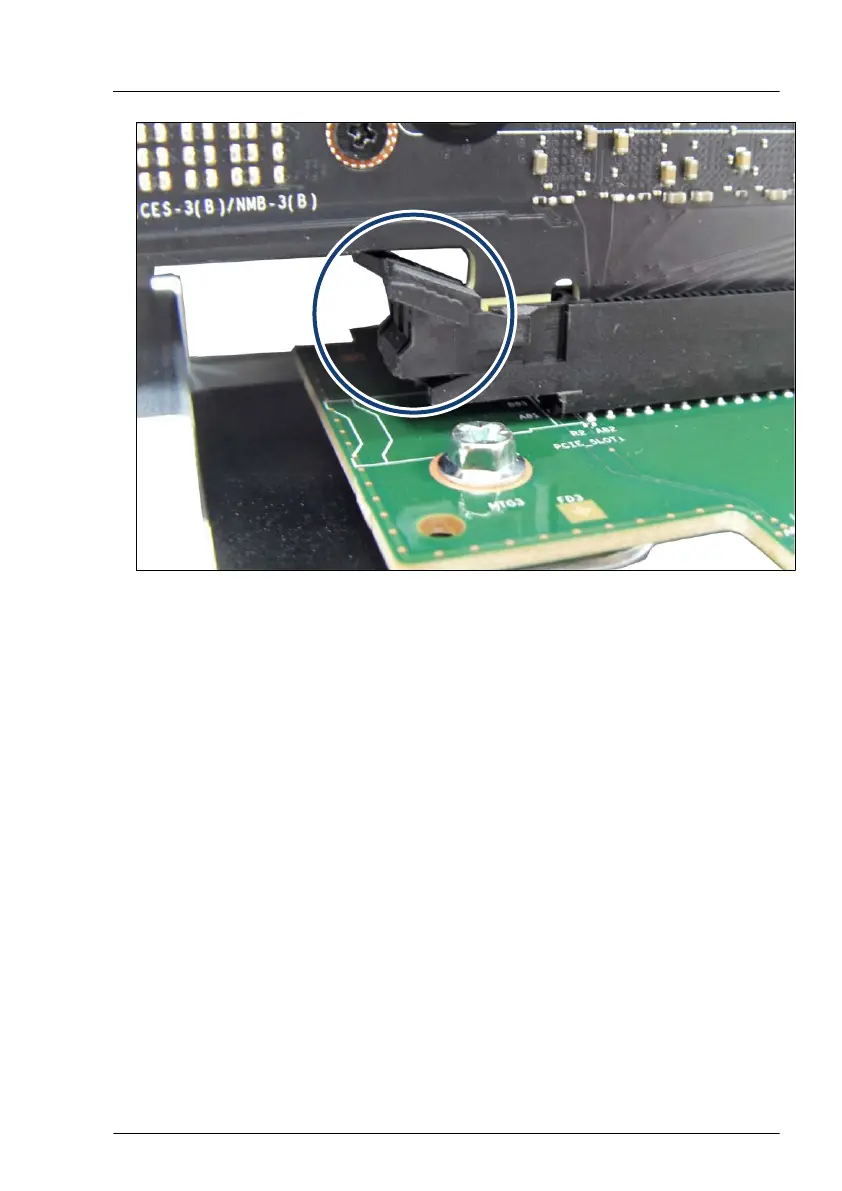

Figure 182: Locking the GPU card
▶
Ensure that the GPU riser latch locks completely in the riser card (see
circle).
▶
Connect the GPU power cable to the system board connector "PWR 9"
(riser module 2) or "PWR 10" (riser module 1).
▶
Install the cross bar, see "Installing the cross bar" on page 81.
▶
Install the air duct, see "Installing the air duct" on page 79.
▶
Install the corresponding riser module, see "Installing a riser module" on
page 72.
Expansion cards and backup units
RX2540 M6 Upgrade and Maintenance Manual 295
