Remove the lower slot cover.
CAUTION
▶
Keep the slot cover for future use.
▶
If the expansion card is removed and not replaced with a new one,
the slot cover must be reinstalled due to cooling, to comply with
applicable EMC regulations and to protect against fire.

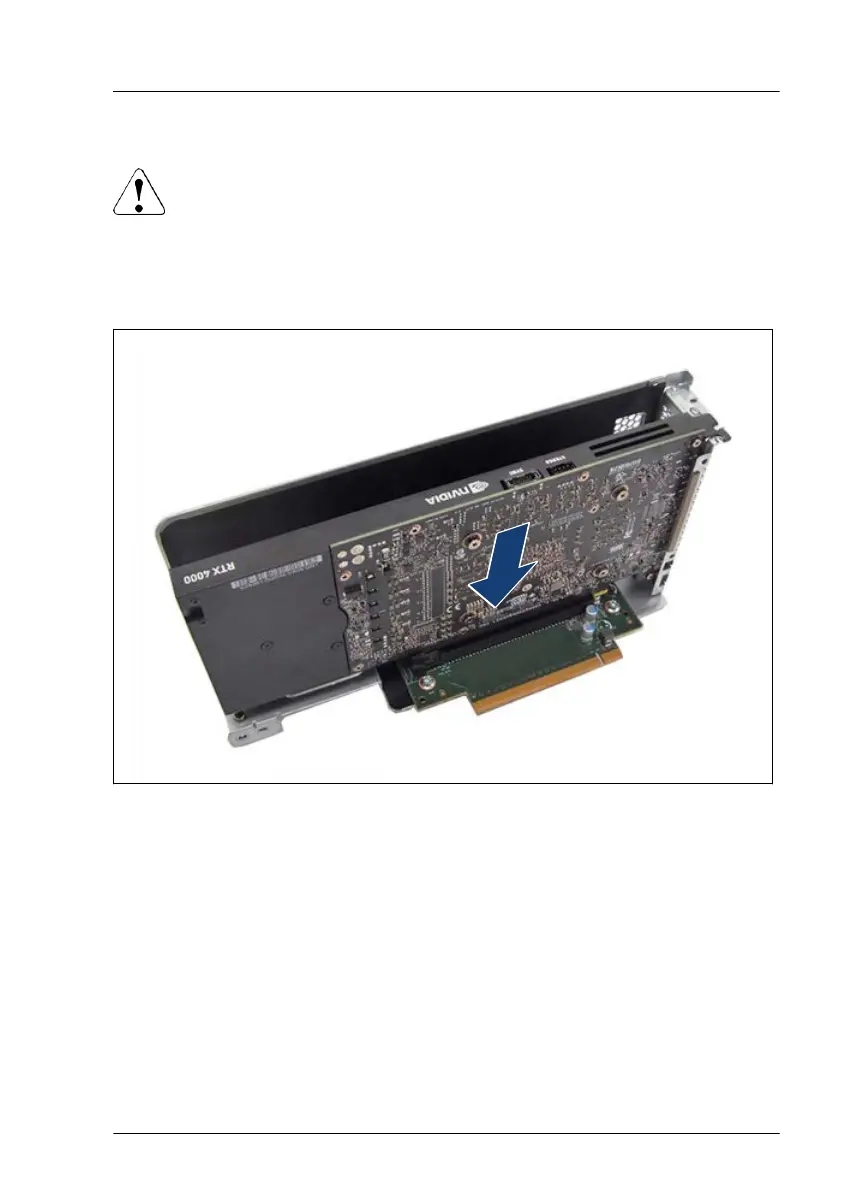

Figure 189: Installing the GPU card in a riser module
▶
Carefully insert the GPU card into the PCIe slot and press down firmly until it
is fully seated in the slot.
Expansion cards and backup units
RX2540 M6 Upgrade and Maintenance Manual 301
