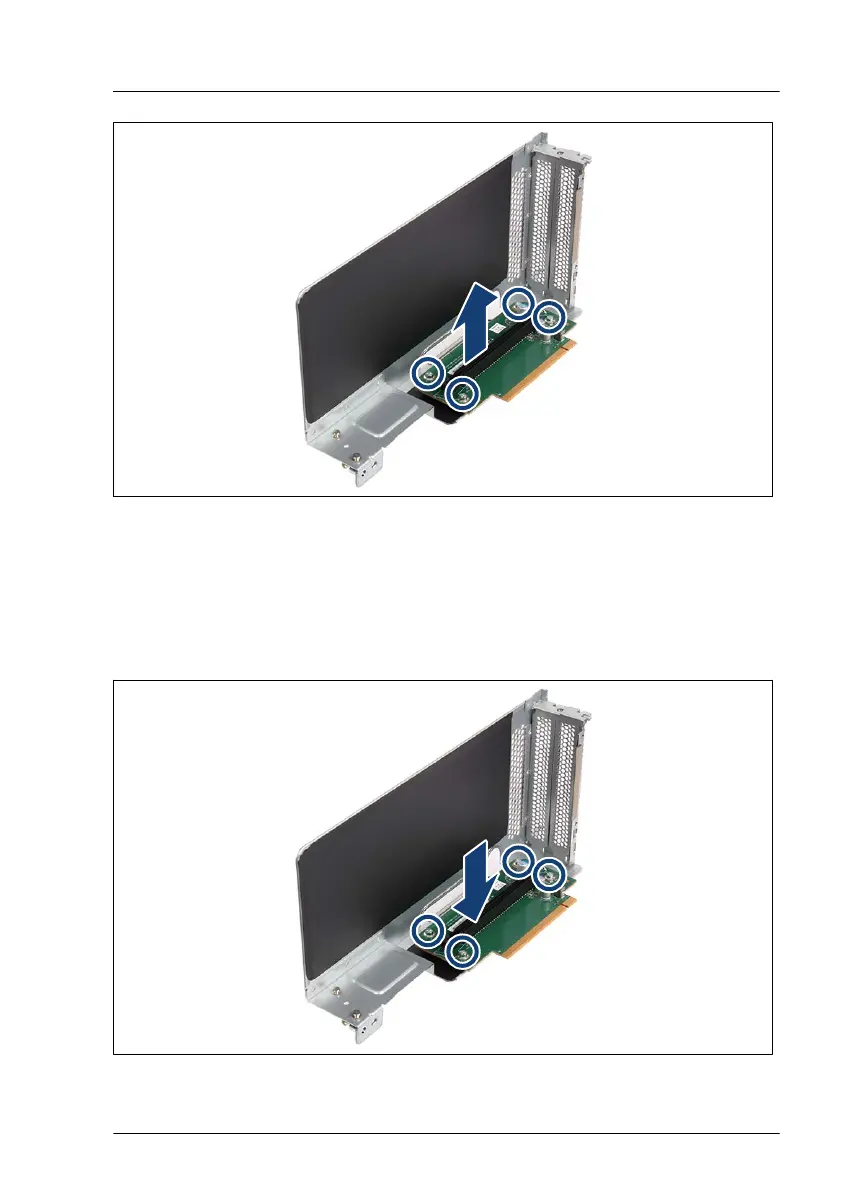

Figure 201: Removing the riser card
▶
Remove the four screws (see circles).
▶
Remove the riser card.
Installing the new riser card
Figure 202: Installing the riser card
Expansion cards and backup units
RX2540 M6
Upgrade and Maintenance Manual
315
